Start here

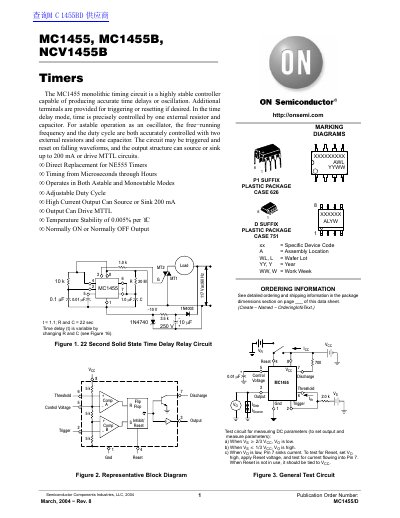

ON Semiconductor MC1455/MC1455B/NCV1455B Timers Datasheet
The document describes the MC1455, MC1455B, and NCV1455B monolithic timing circuits. These devices are capable of producing accurate time delays or oscillation in both monostable (one-shot) and astable modes. The circuit includes two comparators, a flip-flop, and a digital output, allowing it to be triggered and reset on falling waveforms.
Read onlineON Semiconductor MC1455 specifications
| Supply Voltage Range | 4.5 to 16 Vdc |
|---|---|
| Power Dissipation P1 Suffix | 625 mW |
| Operating Temperature Range MC1455B | -40 to +85 C |
| Operating Temperature Range NCV1455B | -40 to +125 C |
Source: ON Semiconductor MC1455/MC1455B/NCV1455B Timers Datasheet
All ON Semiconductor MC1455 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the formula for time delay in monostable mode?
The time that the output is high is given by the equation t = 1.1 Ra C.
From: ON Semiconductor MC1455/MC1455B/NCV1455B Timers Datasheet
What are the charge and discharge times in astable mode?
Charge time is t1 = 0.695(Ra + Rp)C and discharge time is t2 = 0.695(Rp)C.
From: ON Semiconductor MC1455/MC1455B/NCV1455B Timers Datasheet
What is the function of the on-chip oscillator?
The on-chip oscillator provides the low-frequency scanning clock which drives the multiplexer output selector.
From: ON Semiconductor MC14553B 3-Digit BCD Counter Datasheet
How are the counters triggered?
The device consists of three negative edge triggered BCD counters that are cascaded synchronously.
From: ON Semiconductor MC14553B 3-Digit BCD Counter Datasheet
What is the supply voltage range for the MC14551B?
The device operates from 3.0 V DC up to 18 V DC.
From: ON Semiconductor MC14551B Quad 2‑Channel Analog Multiplexer/Demultiplexer Datasheet
What is the maximum power dissipation of the MC14551B?
The maximum power dissipation is 500 mW per package.
From: ON Semiconductor MC14551B Quad 2‑Channel Analog Multiplexer/Demultiplexer Datasheet
