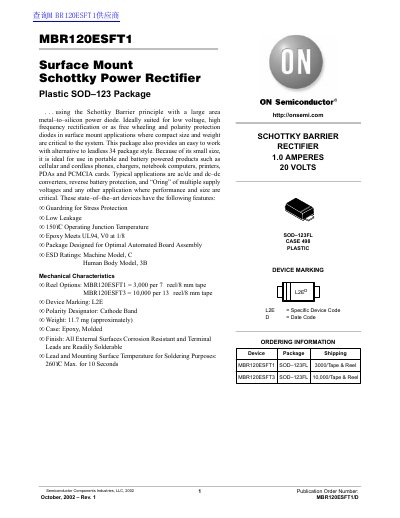

ON Semiconductor MBR120ESFT1 Surface Mount Schottky Power Rectifier Plastic SOD 123 Package handbook
The document describes the MBR120ESFT1, a surface mount Schottky power rectifier designed for low voltage and high frequency applications. It features a plastic SOD-123FL package with a guardring for stress protection and is suitable for use in portable devices such as cellular phones and chargers.
Key electrical ratings include an average rectified forward current of 1.0 A, a peak repetitive reverse voltage of 20 V, and an operating junction temperature range from -65°C to 150°C. The datasheet provides detailed graphs for forward voltage, reverse current, thermal resistance, and capacitance.
ON Semiconductor MBR120ESFT1 specifications
| Peak Repetitive Reverse Voltage (Varo) | 20 V |
|---|---|
| Operating Junction Temperature (Ty) | -65 to 150 °C |
| Package Type | Plastic SOD-123FL |
Source: ON Semiconductor MBR120ESFT1 Surface Mount Schottky Power Rectifier Plastic SOD 123 Package handbook
All ON Semiconductor MBR120ESFT1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The device can operate with a junction temperature between -65°C and 150°C.
From: ON Semiconductor MBR120ESFT1 Surface Mount Schottky Power Rectifier Plastic SOD 123 Package handbook
What is the maximum operating junction temperature for this rectifier?
The device can operate at a maximum junction temperature of 150°C.
From: ON Semiconductor MBR120ESFT1 Surface Mount Schottky Power Rectifier Plastic SOD 123 Package handbook
What is the maximum reverse voltage rating of the MBR120ESFT1?
The device is rated for a maximum reverse voltage of 20 V.
From: ON Semiconductor MBR120ESFT1 Schottky Power Rectifier Datasheet
What package type does the MBR120ESFT1 use?
It is supplied in a plastic SOD‑123FL (case 498) surface‑mount package.
From: ON Semiconductor MBR120ESFT1 Schottky Power Rectifier Datasheet
