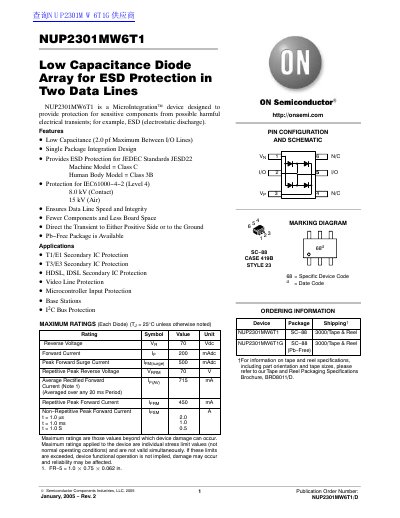

ON Semiconductor NUP2301MW6T1 Low Capacitance Diode Array Datasheet
The NUP2301MW6T1 is a Microlntegration™ device designed to protect sensitive components from harmful electrical transients, such as electrostatic discharge (ESD). It features single package integration and ensures data line speed and integrity while minimizing board space requirements. The device provides ESD protection compliant with JEDEC Standards JESD22 Machine Model Class C and Human Body Model Class 3B.
Read onlineON Semiconductor NUP2301MW6T1 specifications
| Reverse Voltage (VR) | 70 Vdc |
|---|---|
| Forward Current (IF) | 200 mAdc |
| Peak Forward Surge Current (IFM) | 500 mAdc |
| Repetitive Peak Reverse Voltage (VRRM) | 70 Vv |
| Repetitive Peak Forward Current (IFRM) | 450 mA |
| Non-Repetitive Peak Forward Current (Iesm) | 1 A |
| Thermal Resistance Junction-to-Ambient (RθJA) | 625 °C/W |
Source: ON Semiconductor NUP2301MW6T1 Low Capacitance Diode Array Datasheet
All ON Semiconductor NUP2301MW6T1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum capacitance between I/O lines?
The maximum capacitance between I/O lines is 2.0 pF.
From: ON Semiconductor NUP2301MW6T1 Low Capacitance Diode Array Datasheet
What ESD protection standards does this device meet?
It provides ESD Protection for JEDEC Standards JESD22 Machine Model = Class C and Human Body Model = Class 3B.
From: ON Semiconductor NUP2301MW6T1 Low Capacitance Diode Array Datasheet
What is the maximum capacitance between I/O lines for this diode array?
The device has a maximum capacitance of 2.0 pF between I/O lines.
From: ON Semiconductor NUP2301MW6T1 Low Capacitance Diode Array Datasheet
What is the peak forward surge current rating for this diode?
The device can handle a peak forward surge current of 500 mA.
From: ON Semiconductor NUP2301MW6T1 Low Capacitance Diode Array Datasheet
