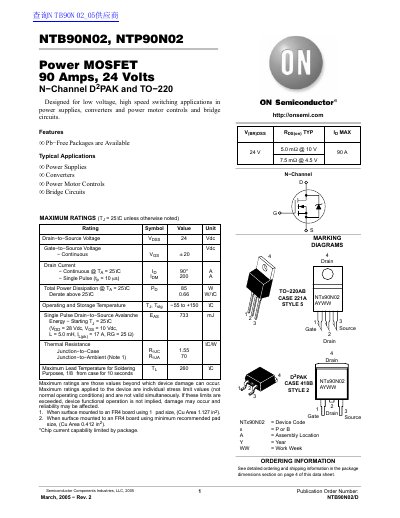

ON NTB90N02 NTP90N02 Power MOSFET 90 Amps 24 Volts N Channel D2 PAK TO 220 handbook
This document provides technical specifications and application information for the NTB90N02 and NTP90N02 N-Channel Power MOSFETs. These devices are designed for low voltage, high speed switching applications found in power supplies, converters, motor controls, and bridge circuits.
Read onlineON Semiconductor NTP90N02 specifications
| Total Power Dissipation (Pd) | 85 W |
|---|---|
| Operating and Storage Temperature Range | -55 °C to +150 °C |
| Junction-to-Case Thermal Resistance (RθJC) | 1.55 °C/W |
| Static Drain-to-Source On-Resistance (RDS(on)) | 7.5 mΩ @ 45V |
Source: ON Semiconductor NTB90N02/NTP90N02 Power MOSFET Datasheet
All ON Semiconductor NTP90N02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for these MOSFETs?
They are designed for low voltage, high speed switching in power supplies, converters, power motor controls, and bridge circuits.
From: ON NTB90N02 NTP90N02 Power MOSFET 90 Amps 24 Volts N Channel D2 PAK TO 220 handbook
Are Pb-Free packages available?
Yes, the document notes that Pb-Free Packages are available.
From: ON NTB90N02 NTP90N02 Power MOSFET 90 Amps 24 Volts N Channel D2 PAK TO 220 handbook
What are the typical applications for this MOSFET?
Typical applications include power supplies, converters, power motor controls, and bridge circuits.
From: ON Semiconductor NTB90N02/NTP90N02 Power MOSFET Datasheet
What packages are available for the NTB90N02/NTP90N02?
The devices are available in N-Channel D2PAK and TO-220 packages.
From: ON Semiconductor NTB90N02/NTP90N02 Power MOSFET Datasheet
