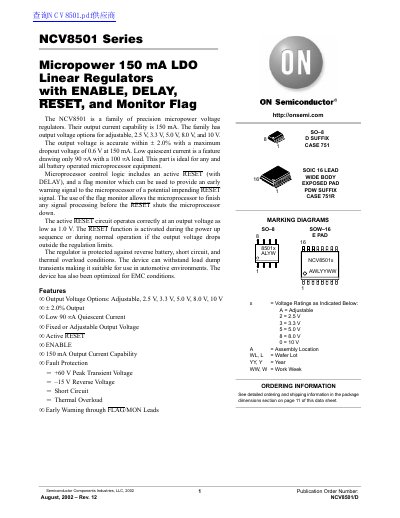

ON Semiconductor NCV8501 Series Micropower 150 mA LDO Linear Regulators Datasheet
The NCV8501 is a family of precision micropower voltage regulators with an output current capability of 150 mA. The family offers output voltage options for adjustable settings or fixed voltages of 2.5 V, 3.3 V, 5.0 V, 8.0 V, and 10 V. The output voltage is accurate within +2.0% with a maximum dropout voltage of 0.6 V at 150 mA.
Read onlineON Semiconductor NCV8501 specifications
| Output Current Capability | 150 mA |
|---|---|
| Output Voltage Options | Adjustable, 2.5 V, 3.3 V, 5.0 V, 8.0 V, 10 V |
| Output Voltage Accuracy | +2.0% |
| Maximum Dropout Voltage | 0.6 V |
| Quiescent Current (Low Load) | 90 µA |
| Operating Temperature Range | -40 to +150 °C |
| Input Voltage Range | -15 to 45 V |
Source: ON Semiconductor NCV8501 Series Micropower 150 mA LDO Linear Regulators Datasheet
All ON Semiconductor NCV8501 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current of the NCV8501?
The maximum output current capability is 150 mA.
From: ON Semiconductor NCV8501 Series Micropower 150 mA LDO Linear Regulators Datasheet
What are the available fixed output voltage options?
The available fixed output voltage options are 2.5 V, 3.3 V, 5.0 V, 8.0 V, and 10 V.
From: ON Semiconductor NCV8501 Series Micropower 150 mA LDO Linear Regulators Datasheet
What output voltage options are available for the NCV8501?
The family has output voltage options for adjustable, 2.5 V, 3.3 V, 5.0 V, 8.0 V, and 10 V.
What is the minimum output voltage required for the active RESET function?
The active RESET circuit operates correctly at an output voltage as low as 1.0 V.
