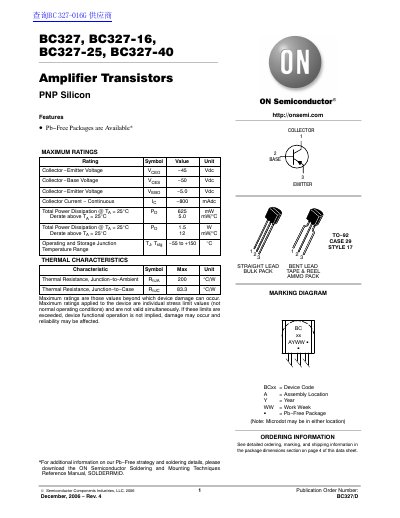

ON Semiconductor BC327 Series PNP Transistor Datasheet
This document is a datasheet for the BC327 series of PNP silicon amplifier transistors manufactured by ON Semiconductor. It provides comprehensive technical data including maximum ratings, thermal characteristics, and electrical specifications for the BC327, BC327-16, BC327-25, and BC327-40 models. The text includes detailed tables for DC current gain, saturation voltage, and breakdown voltages under specific test conditions.
Read onlineON Semiconductor BC327 specifications
| Collector-Emitter Voltage (VCEO) | -45 Vdc |
|---|---|
| Collector-Base Voltage (VCE) | -50 Vdc |
| Collector Current (Continuous) | -800 mA |
| Total Power Dissipation @ 25°C | 625 mW |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction-to-Ambient | 200 °C/W |
| DC Current Gain (BC327) | 100 to 630 |
| Collector-Emitter Saturation Voltage | -0.7 Vdc |
Source: ON Semiconductor BC327 Series PNP Transistor Datasheet
All ON Semiconductor BC327 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector-emitter voltage for the BC327?
The maximum collector-emitter voltage (VCEO) is -45 Vdc.
From: ON Semiconductor BC327 Series PNP Transistor Datasheet
What is the continuous collector current rating?
The continuous collector current (IC) is rated at -800 mAdc.
From: ON Semiconductor BC327 Series PNP Transistor Datasheet
What is the maximum continuous collector current for the BC327?
The maximum continuous collector current (Io) is -800 mA.
From: ON Semiconductor BC327 Series PNP Amplifier Transistors Datasheet
What are the operating and storage temperature ranges for these transistors?
The operating and storage junction temperature range is from -55 to +150 °C.
From: ON Semiconductor BC327 Series PNP Amplifier Transistors Datasheet
