Start here

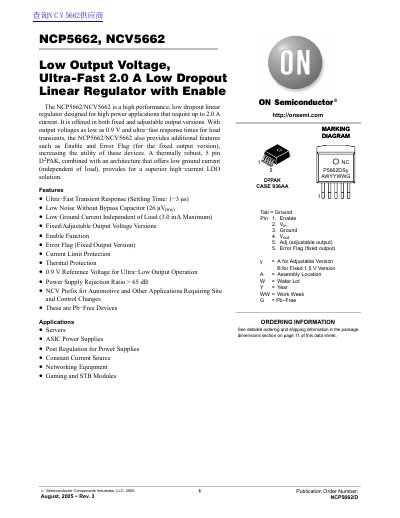

NCP5662/NCV5662 Low Dropout Linear Regulator Datasheet
The NCP5662 and NCV5662 are high-performance low dropout linear regulators designed for high power applications requiring up to 2.0 A of current. They are offered in both fixed and adjustable output versions with output voltages as low as 0.9 V. The devices feature an ultra-fast transient response with settling times of 1-3 microseconds and low noise without the need for a bypass capacitor.
These regulators are housed in a thermally robust 5-pin D2PAK package. Key features include an Enable function, Error Flag for the fixed output version, current limit protection, and thermal protection. The NCV prefix indicates versions suitable for automotive and other applications requiring control changes.
ON Semiconductor NCP5662 specifications
| Settling Time | 1-3 us |
|---|---|
| Ground Current | 3.0 mA Maximum |
| Input Voltage | 2.0 - 9.0 V |
| Output Noise Voltage | 26 uVrms |
| Package Type | 5 pin D2PAK |
| Thermal Shutdown | 160 °C |
Source: NCP5662/NCV5662 Low Dropout Linear Regulator Datasheet
All ON Semiconductor NCP5662 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is a bypass capacitor required for low noise?
No, the device offers low noise without a bypass capacitor.
From: NCP5662/NCV5662 Low Dropout Linear Regulator Datasheet
What are the available output voltage options?
Fixed versions are available at 0.9 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.0 V, and 3.3 V, or adjustable.
From: NCP5662/NCV5662 Low Dropout Linear Regulator Datasheet
What is the maximum input voltage for the NCP5662/NCV5662?
The device can tolerate up to 18 V on the input pin.
What is the dropout voltage at a 2 A load?
The dropout voltage is between 1.0 V and 1.3 V when delivering 2 A.
