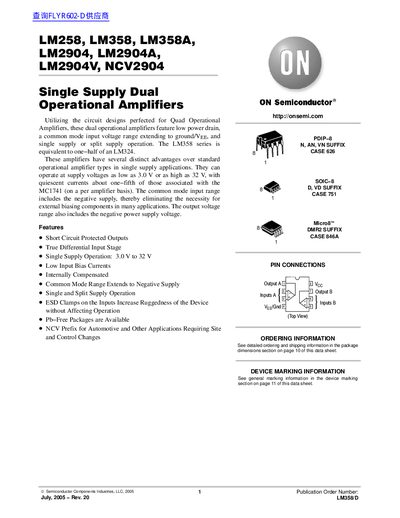

ON Semiconductor LM258/LM358/LM358A/LM2904/LM2904A/LM2904V/NCV2904 Operational Amplifiers Datasheet
The LM258 series and its related parts are single‑supply dual operational amplifiers offering low power drain, short‑circuit protected outputs and input common‑mode range that extends to the negative supply. They operate from 3.0 V up to 32 V and are available in PDIP‑8, SOIC‑8 and Micro8 packages.
The document provides maximum ratings, detailed electrical characteristics, circuit description, package dimensions and ordering information. It also notes that the NCV2904 variant is qualified for automotive applications.
All ON Semiconductor LM258, LM358, LM358A, LM2904, LM2904A, LM2904V, NCV2904 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the common‑mode input voltage range?
The common‑mode range extends to the negative supply, allowing operation down to ground.
From: ON Semiconductor LM258/LM358/LM358A/LM2904/LM2904A/LM2904V/NCV2904 Operational Amplifiers Datasheet
Is the NCV2904 version suitable for automotive use?
Yes, the NCV2904 is qualified for automotive applications.
From: ON Semiconductor LM258/LM358/LM358A/LM2904/LM2904A/LM2904V/NCV2904 Operational Amplifiers Datasheet
