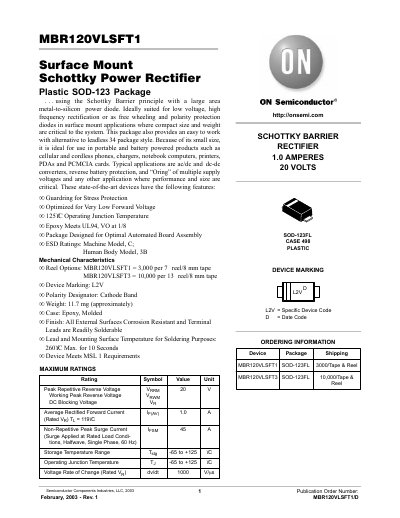

ON Semiconductor MBR120VLSFT1 Schottky Power Rectifier Datasheet
Datasheet 7 pages · 57 KB · EN
The MBR120VLSFT1 is a surface mount Schottky power rectifier designed for low voltage, high frequency rectification and polarity protection. It utilizes a large area metal-to-silicon power diode and is available in a plastic SOD-123 package. The device is optimized for very low forward voltage and features a guardring for stress protection, making it suitable for portable and battery-powered products.
Read onlineAll ON Semiconductor MBR120VLSFT1 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is 125°C.
From: ON Semiconductor MBR120VLSFT1 Schottky Power Rectifier Datasheet
What is the maximum peak repetitive reverse voltage?
The device can withstand a peak repetitive reverse voltage of up to 20 V.
From: ON Semiconductor MBR120VLSFT1 Schottky Power Rectifier Datasheet
