Start here

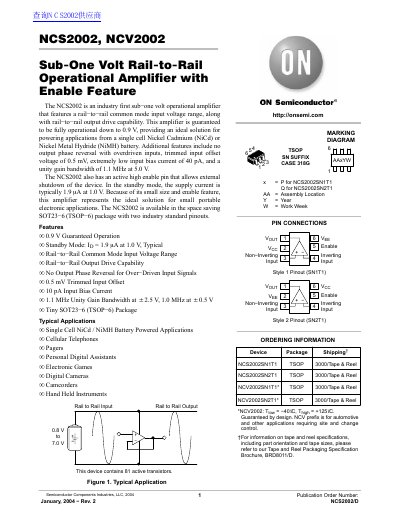

NCS2002, NCV2002 Sub-One Volt Rail-to-Rail Operational Amplifier Datasheet
The NCS2002 and NCV2002 are sub-one volt operational amplifiers designed for powering applications from a single cell battery. They feature a rail-to-rail common mode input voltage range and rail-to-rail output drive capability, ensuring full operation down to 0.9 V. The device includes an active high enable pin for external shutdown, reducing supply current to typically 1.9 µA at 1.0 V in standby mode.
Read onlineON Semiconductor NCV2002 specifications
| Guaranteed Operation Voltage | 0.9 V |
|---|---|
| Standby Mode Supply Current | 1.9 µA |
| Input Offset Voltage | 0.5 mV |
| Input Bias Current | 40 pA |
| Unity Gain Bandwidth | 1.1 MHz |
| Package Type | SOT23-6 (TSOP-6) |
| Supply Voltage Range | -0.3 V to 7.0 V |
| Operating Ambient Temperature (NCS2002) | -40 to 105 °C |
| Operating Ambient Temperature (NCV2002) | -40 to 125 °C |
Source: NCS2002, NCV2002 Sub-One Volt Rail-to-Rail Operational Amplifier Datasheet
All ON Semiconductor NCV2002 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum guaranteed operating voltage?
The device is guaranteed to be fully operational down to 0.9 V.
From: NCS2002, NCV2002 Sub-One Volt Rail-to-Rail Operational Amplifier Datasheet
What is the typical standby current at 1.0 V?
The supply current is typically 1.9 µA at 1.0 V in standby mode.
From: NCS2002, NCV2002 Sub-One Volt Rail-to-Rail Operational Amplifier Datasheet
What is the standby mode current of the NCS2002?
The standby mode current is typically 1.9 µA at a supply voltage of 1.0 V.
From: ON Semiconductor NCS2002/NCV2002 Sub-One Volt Rail-to-Rail Operational Amplifier Datasheet
Which package does the NCS2002/NCV2002 come in?
It is available in a space‑saving SOT23‑6 (TSOP‑6) package with two standard pinouts.
From: ON Semiconductor NCS2002/NCV2002 Sub-One Volt Rail-to-Rail Operational Amplifier Datasheet
