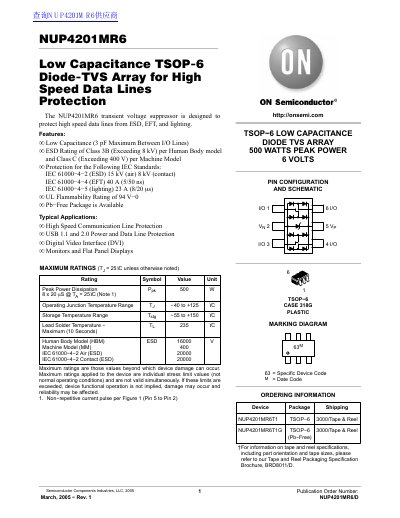

ON NUP4201MR6 Low Capacitance TSOP-6 Diode-TVS Array for High Speed Data Lines Protection handbook
The NUP4201MR6 is a transient voltage suppressor designed to protect high-speed data lines from electrostatic discharge (ESD), electrostatic field transients (EFT), and lightning. It features a low capacitance of 3 pF maximum between I/O lines and offers an ESD rating of Class 3B (exceeding 8 kV) per the Human Body model and Class C (exceeding 400 V) per the Machine Model. The device is available in a Pb-free TSOP-6 package.
Read onlineON Semiconductor TSOP-6 specifications
| Peak Power Dissipation | 500 W |
|---|---|
| Operating Junction Temperature Range | -40 to +125 °C |
| Human Body Model (HBM) ESD Rating | 16000 V |
| Machine Model (MM) ESD Rating | 400 V |
| Reverse Working Voltage | 5.0 V |
| Breakdown Voltage | 6.0 V |
| Junction Capacitance (I/O Pins and GND) | 3.0 pF |
| Maximum Peak Pulse Current | 25 A |
Source: ON NUP4201MR6 Low Capacitance TSOP-6 Diode-TVS Array for High Speed Data Lines Protection handbook
All ON Semiconductor TSOP-6 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What standards does the NUP4201MR6 protect against?
It protects against IEC 61000-4—2 (ESD), IEC 61000-4—4 (EFT), and IEC 61000-4-5 (lighting).
From: ON NUP4201MR6 Low Capacitance TSOP-6 Diode-TVS Array for High Speed Data Lines Protection handbook
Is the NUP4201MR6 available in a lead-free package?
Yes, a Pb-Free Package is available for this device.
From: ON NUP4201MR6 Low Capacitance TSOP-6 Diode-TVS Array for High Speed Data Lines Protection handbook
What standards does the NUP2201MR6 protect against?
It protects against IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), and IEC 61000-4-5 (lighting).
From: ON NUP2201MR6 Low Capacitance TSOP-6 Diode-TVS Array for High Speed Data Lines Protection handbook
What are the typical applications for this device?
Typical applications include high-speed communication line protection, USB 1.1 and 2.0 power and data line protection, and digital video interfaces.
From: ON NUP2201MR6 Low Capacitance TSOP-6 Diode-TVS Array for High Speed Data Lines Protection handbook
