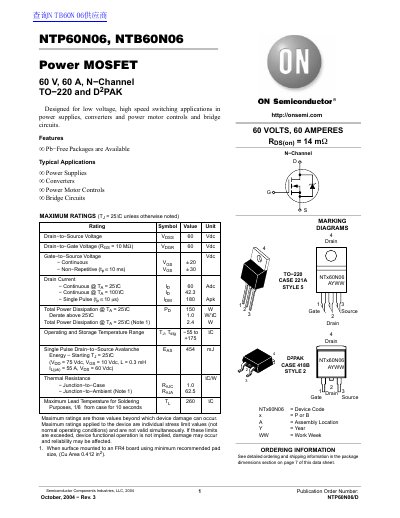

ON Semiconductor NTP60N06/NTB60N06 Power MOSFET Datasheet
This document is a datasheet for the NTP60N06 and NTB60N06 Power MOSFETs. These devices are designed for low voltage, high speed switching applications in power supplies, converters, power motor controls, and bridge circuits. They are available in Pb-Free TO-220 and D2PAK packages.
Read onlineON Semiconductor NTB60N06 specifications
| Drain-to-Source Voltage | 60 V |
|---|---|
| Drain Current (Continuous @ 25°C) | 60 A |
| Total Power Dissipation @ 25°C | 150 W |
| Operating and Storage Temperature Range | -55 to +175 °C |
| Package Types | TO-220 and D2PAK |
Source: ON Semiconductor NTP60N06/NTB60N06 Power MOSFET Datasheet
All ON Semiconductor NTB60N06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current is 60 A at a temperature of 25°C.
From: ON Semiconductor NTP60N06/NTB60N06 Power MOSFET Datasheet
What is the maximum total power dissipation at 25°C?
The maximum total power dissipation is 150 W at an ambient temperature of 25°C.
From: ON Semiconductor NTP60N06/NTB60N06 Power MOSFET Datasheet
What are the typical applications for this MOSFET?
Typical applications include power supplies, converters, power motor controls, and bridge circuits.
From: ON Semiconductor NTP60N06L/NTB60N06L Power MOSFET Datasheet
Are Pb-Free packages available?
Yes, Pb-Free packages are available for these devices.
From: ON Semiconductor NTP60N06L/NTB60N06L Power MOSFET Datasheet
