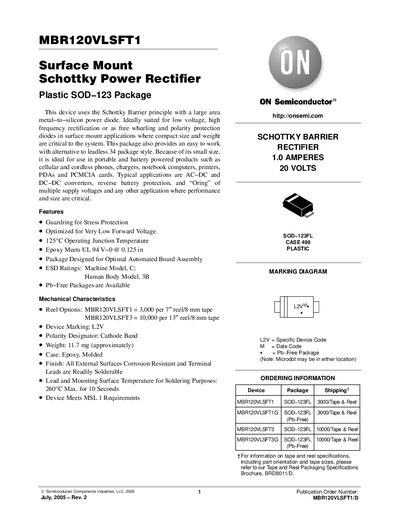

MBR120VLSFT1 is a surface mount Schottky power rectifier produced by Semiconductor Components Industries, LLC. It uses the Schottky Barrier principle with a large area metal-to-silicon power diode. It is ideal for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system
The MBR120VLSFT1 is a surface‑mount Schottky barrier diode designed for low‑voltage, high‑frequency rectification, free‑wheeling, polarity protection, and ORing of multiple supplies. Its compact SOD‑123 package makes it suitable for portable, battery‑powered devices such as phones, chargers, notebooks, and printers.
Key specifications include a typical forward voltage of 0.340 V at 1 A, a maximum reverse voltage of 20 V, a surge current rating of 45 A, and an operating junction temperature range of –65 °C to +125 °C. The device features a guard‑ring for stress protection, ESD ratings of 100 pF (machine) and 3 pF (human body), and a lead‑free, epoxy‑molded package.
