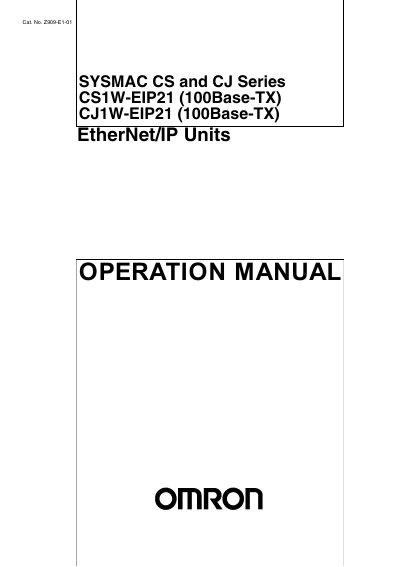

This operation manual provides instructions and precautions for using OMRON SYSMAC CS and CJ Series CS1W-EIP21 (100Base-TX) CJ1W-EIP21 (100Base-TX) EtherNet/IP Units.
The manual provides detailed instructions for operating the CS1W‑EIP21 and CJ1W‑EIP21 EtherNet/IP Units, including safety precautions, system design, network configurator installation, and initial setup. It also covers IP address configuration, memory allocations, and FINS communications for host applications.
Key sections include features and system configuration, network design procedures, installation steps for the Network Configurator, mounting the unit to a PLC, and troubleshooting guidance. Appendices contain Ethernet network parameters, buffer configuration, TCP status transitions, and maintenance information.
