CJ1 is a new PLC product from Mitsubishi Electric with the highest level of control performance in the industry. It is small, flexible, and fast, and is suitable for various machine control applications.

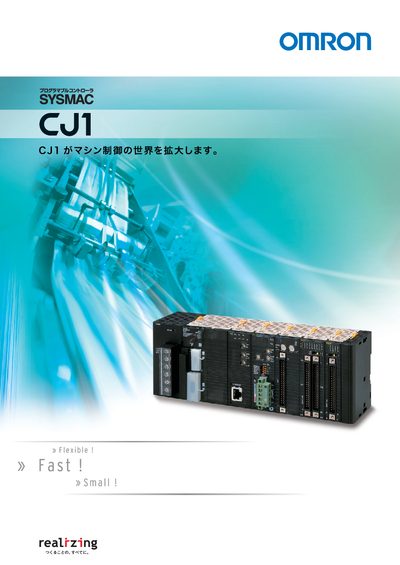

The Omron CJ1 series provides high‑speed, compact PLC solutions for a wide range of applications, from large networked systems to small temperature‑control machines. It offers flexible CPU modules, Ethernet connectivity, and a variety of I/O units, all within a base‑less, space‑saving design (height 90 mm, depth 65 mm).\n\nThe manual details CPU specifications, I/O capacities, programming features such as Function Block, Sequential Function Chart, and Structured Text, as well as Ethernet functions, Ethernet‑based communication services, and warranty information. This manual is written in Japanese.
| スキャンタイム | 30Kステップ 870 µs |
|---|---|
| 基本処理命令速度 | LD 16 ns / OUT 16 ns |
| 浮動小数点演算速度 | 加減算 0.24 µs, 乗算 0.24 µs |
| 割込み応答時間 | 40 µs |
| I/Oポイント数 | 入力128点、出力128点 |
| プログラム容量 | 5K‑250Kステップ |
| データメモリ容量 | 32K‑448Kワード |
| 外形寸法 | 高さ90 mm、奥行き65 mm |
The scan time is 30 K steps in 870 µs.
Both LD and OUT execute in 16 ns.
The interrupt response time is 40 µs.
It supports 128 input points and 128 output points.
