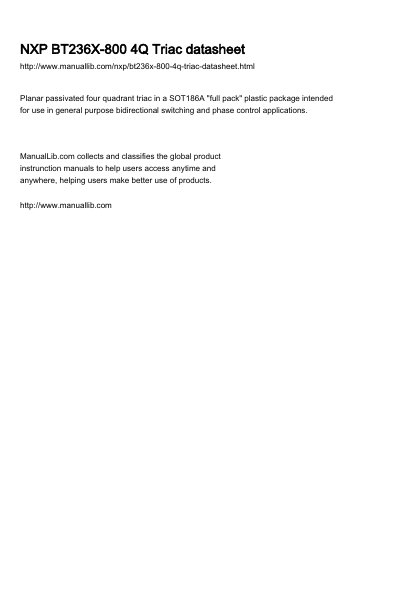

NXP BT236X-800 4Q Triac Datasheet
Datasheet 14 pages · 226 KB · EN
The document describes the NXP BT236X-800, a planar passivated four quadrant triac housed in an isolated TO-220F (SOT186A) plastic package. It is designed for general-purpose bidirectional switching and phase control applications.
Read onlineNXP BT236X-800 specifications
| Repetitive peak off-state voltage (VDRM) | 800 V |
|---|---|
| Non-repetitive peak on-state current (ITSM) | 65 A |
| RMS on-state current (IT(RMS)) | 6 A |
| Gate trigger current (IGT) | 30 mA to 70 mA |
| RMS isolation voltage (Visol) | 2500 V |
All NXP BT236X-800 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum RMS on-state current for this triac?
The maximum RMS on-state current is 6 A.
What is the maximum non-repetitive peak on-state current?
The maximum non-repetitive peak on-state current is 65 A.
What is the maximum repetitive peak off-state voltage for this triac?
The maximum repetitive peak off-state voltage is 800 V.
What is the maximum RMS on-state current when the heatsink temperature is 88 °C?
The maximum RMS on-state current is 6 A when the heatsink temperature is 88 °C.
