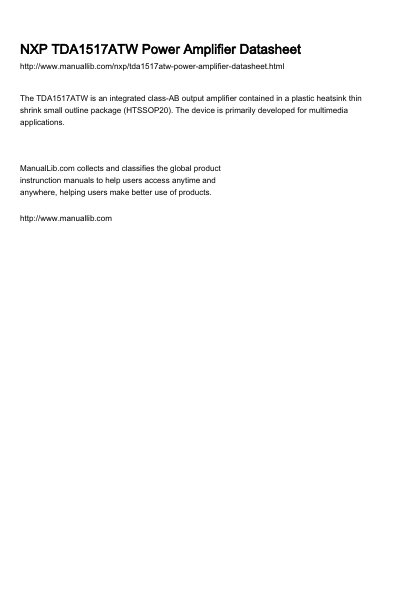

NXP TDA1517ATW Power Amplifier Datasheet
The TDA1517ATW is an integrated class-AB output amplifier contained in a plastic heatsink thin shrink small outline package (HTSSOP20). The device is primarily developed for multimedia applications and features flexibility to operate as a mono Bridge-Tied Load (BTL) or stereo Single-Ended (SE) amplifier.
Key characteristics include electrostatic discharge protection, thermal protection, reverse polarity safety, and the ability to handle high energy on outputs. It operates with AC and DC short-circuit safe-to-ground capabilities and includes a mode select switch for operating, mute, and standby modes.
NXP TDA1517 specifications
| Supply Voltage (Vp) | 6 to 18 V |
|---|---|
| Output Power (BTL) | 8 W at THD = 10% |
| Output Power (SE) | 4 W per channel at THD = 10% |
| Voltage Gain | Fixed at 20 dB |
| Package Type | HTSSOP20 |
All NXP TDA1517 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the TDA1517ATW suitable for automotive applications?
No, unless expressly stated otherwise in a specific datasheet, this product is not suitable for automotive use.
What is the maximum supply voltage?
The maximum supply voltage (Vp) is 18 V.
What is the primary application for this amplifier?
The device is primarily developed for multi-media applications.
Does the TDA1517 have short-circuit protection?
Yes, it features AC and DC short-circuit safe operation to ground and Vp.
