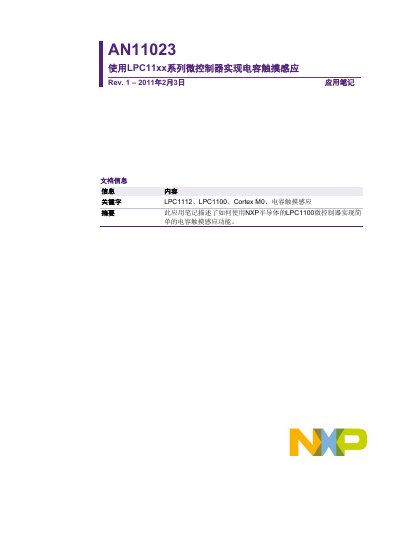

NXP LPC11xx Capacitive Touch Sensing Application Note
This document explains how to implement a simple capacitive touch sensing function using the Analog-to-Digital Converter (ADC) input of the NXP LPC11xx microcontroller. It details the working mode of the system, which involves charging an external capacitor via an IO pin configured as an output, followed by discharging it while configured as an ADC input to detect changes in capacitance caused by a finger touch. The process includes configuring the pin, starting the ADC conversion, sampling the result, and debouncing the signal.
Read onlineNXP LPC11xx specifications
| CPU Architecture | ARM Cortex-M0 |
|---|---|
| Maximum CPU Frequency | 50 MHz |
| Flash Memory | Up to 32 kB |
| SRAM | Up to 8 kB |
| ADC Resolution | 8-bit |
| GPIO Pins | Up to 27 |
| Power Supply | 1.65 V to 1.95 V |
| Deep-sleep Current | < 1.6 A |
Source: NXP LPC111xLV/LPC11xxLVUK 32-bit ARM Cortex-M0 Microcontroller Datasheet
