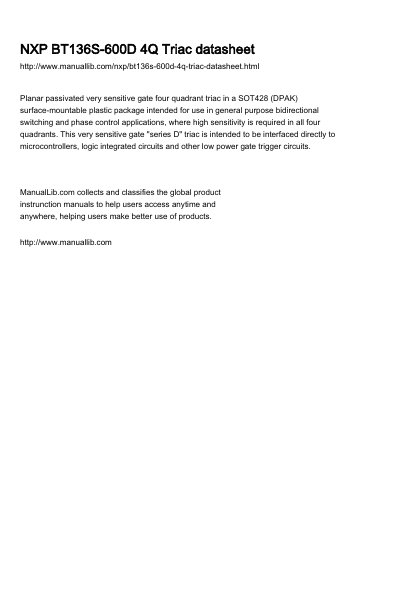

NXP BT136S-600D 4Q Triac Datasheet
The NXP BT136S-600D 4Q Triac is a planar passivated very sensitive gate four quadrant triac designed for general purpose bidirectional switching and phase control applications. It is housed in a SOT428 (DPAK) surface-mountable plastic package and is intended for use in high sensitivity scenarios across all four quadrants.
Read onlineNXP BT136S-600 specifications
| Repetitive peak off-state voltage | 600 V |
|---|---|
| Non-repetitive peak on-state current | 25 A |
| RMS on-state current | 4 A |
| Gate trigger current (T2+ G+) | 2 to 5 mA |
| Holding current | 1.2 to 10 mA |
| Thermal resistance junction to mounting base | 3 K/W |
| Storage temperature | -40 to 150 °C |
| Junction temperature | 125 °C |
All NXP BT136S-600 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for the BT136S-600D?
The device is available in a SOT428 (DPAK) surface-mountable plastic package.
What are the main applications for this triac?
It is intended for general purpose motor control and general purpose switching.
What are the applications for the BT136S-600?
It is intended for use in general purpose motor control and general purpose switching applications.
What is the maximum junction temperature?
The maximum junction temperature is 125 °C.
What are the applications for this triac?
It is intended for general purpose motor control and general purpose switching.
Can this device be triggered directly by logic ICs?
Yes, it is designed to be interfaced directly to microcontrollers and other low power gate trigger circuits.
