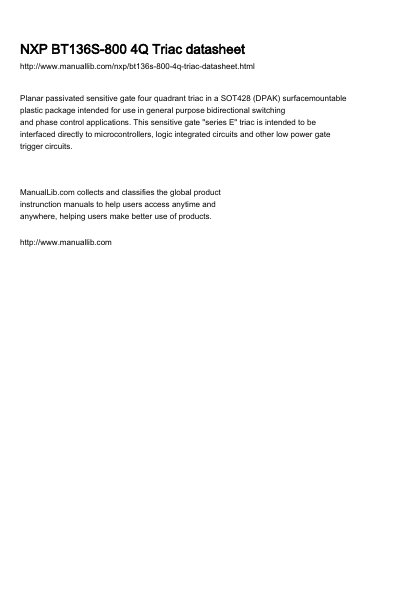

NXP BT136S-800 4Q Triac Datasheet
The NXP BT136S-800 is a planar passivated sensitive gate four quadrant triac designed for general purpose bidirectional switching and phase control applications. It is housed in a surface-mountable SOT428 (DPAK) plastic package intended for direct interfacing with microcontrollers and low power gate trigger circuits.
Key features include high blocking voltage capability, improved noise immunity due to a less sensitive gate, and voltage ruggedness provided by the planar passivated structure. The device supports triggering in all four quadrants, making it suitable for general purpose motor control and switching tasks.
NXP BT136S-800 specifications
| Repetitive peak off-state voltage | 800 V |
|---|---|
| Package type | SOT428 (DPAK) |
| Storage temperature | -40 to 150 °C |
| Junction temperature | - 125 °C |
All NXP BT136S-800 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for the BT136S-800E?
The device is available in a surface-mountable SOT428 (DPAK) plastic package.
What are the main applications for this triac?
It is intended for general purpose motor control and general purpose switching.
Is this product qualified for automotive use?
No, unless expressly stated, the product is not suitable for automotive use and is not qualified or tested for it.
What is the maximum repetitive peak off-state voltage for this triac?
The device supports a maximum repetitive peak off-state voltage of 800 V.
