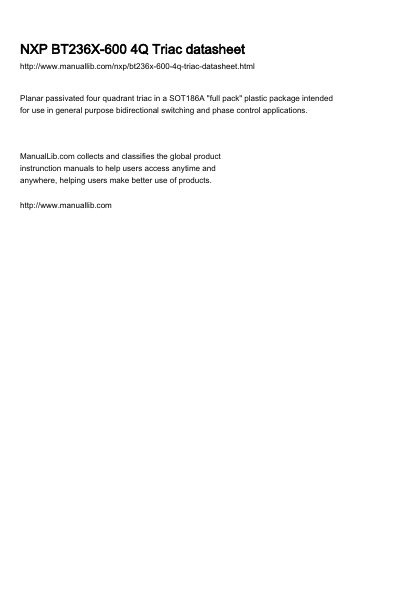

NXP BT236X-600 4Q Triac Datasheet
The NXP BT236X-600 is a planar passivated four quadrant triac housed in a SOT186A 'full pack' plastic package. It is designed for general purpose bidirectional switching and phase control applications, offering high blocking voltage capability and improved noise immunity through an isolated package and less sensitive gate.
Read onlineNXP BT236X-600 specifications
| Repetitive peak off-state voltage | 600 V |
|---|---|
| Junction temperature | 125 °C |
| Package type | SOT186A |
All NXP BT236X-600 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications of the BT236X-600?
It is intended for use in general purpose motor control and general purpose switching applications.
What is the maximum junction temperature?
The maximum junction temperature is 125 °C.
What are the applications of the BT236X-600F?
It is intended for general purpose motor control and general purpose switching.
What package type does the BT236X-600F use?
It uses a SOT186A 'full pack' plastic package with an isolated heatsink mount.
What are the applications of the BT236X-600G 4Q Triac?
It is intended for use in general purpose motor control and general purpose switching applications.
What is the maximum junction temperature?
The maximum junction temperature is 125 °C.
