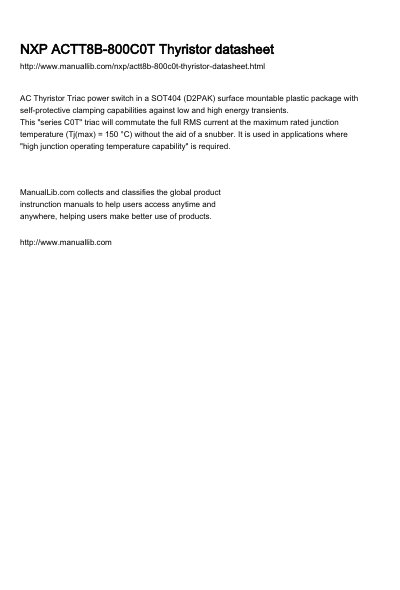

NXP ACTT8B-800C0T AC Thyristor Triac Datasheet
The NXP ACTT8B-800C0T is an AC Thyristor Triac power switch housed in a SOT404 (D2PAK) surface mountable plastic package. It features self-protective clamping capabilities against low and high energy transients, allowing it to commutate full RMS current at a maximum rated junction temperature of 150 °C without the aid of a snubber. This device is specifically designed for applications requiring high junction operating temperature capability.
Read onlineAll NXP ACTT8B-800C0 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does this triac require a snubber circuit?
No, this triac will commutate the full RMS current at the maximum rated junction temperature without the aid of a snubber.
What is the maximum junction operating temperature?
The maximum rated junction temperature is 150 °C.
What is the package type for the ACTT8B-800C0?
The device is available in a SOT404 (D2PAK) surface mountable plastic package.
Is the ACTT8B-800C0 pin compatible with standard triacs?
Yes, the device is pin compatible with standard triacs.
