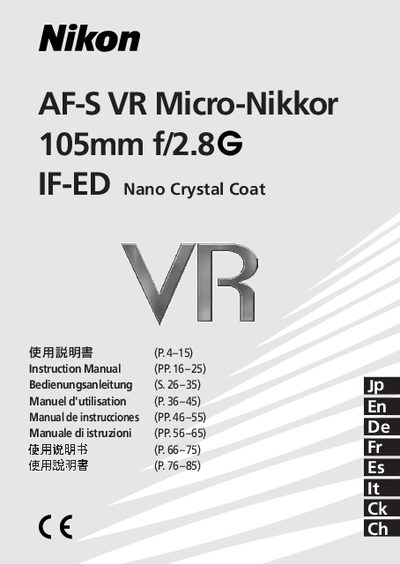

Nikon AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED Lens Instruction Manual
This manual covers the Nikon AF‑S VR Micro‑Nikkor 105 mm f/2.8 G IF‑ED lens, a G‑type AF‑S macro lens with built‑in CPU and Nikon F‑mount. It features internal focusing, a Silent Wave Motor, and lens‑shift vibration reduction using voice‑coil motors.
The document lists full technical specifications, including focal length, aperture range, lens construction, minimum focusing distance, diaphragm design, filter thread, dimensions, and weight, as well as depth‑of‑field tables and operating instructions for photographers. This manual is written in Japanese.
Nikon 2.8G IF specifications
| Focal length | 105 mm |
|---|---|
| Maximum aperture | f/2.8 |
| Lens construction | 14 elements in 12 groups |
| Closest focus distance | 0.314 m (1 ft) |
| Diaphragm blades | 9 rounded |
| Filter thread size | 62 mm (P = 0.75 mm) |
| Dimensions | ≈ 83 mm × 116 mm |
| Weight | ≈ 720 g |
| Vibration reduction | Lens‑shift method using voice‑coil motors |
Source: Nikon AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED Lens Instruction Manual
All Nikon 2.8G IF documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum focusing distance of the lens?
The closest focusing distance is 0.314 m (1 ft).
From: Nikon AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED Lens Instruction Manual
How many diaphragm blades does the lens have?
The lens uses 9 rounded diaphragm blades.
From: Nikon AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED Lens Instruction Manual
What is the minimum focusing distance?
The minimum focusing distance is 1.5 m in automatic zoom mode (1.4 m in manual zoom mode).
What filter size does the lens use?
The lens accepts 77 mm screw‑in filters.
