Key facts
- Brand
- Nikon
- Model
- 1.8 D
- Documents
- 2
- Languages
- EN
- Last added
- 2014-05-12
Start here

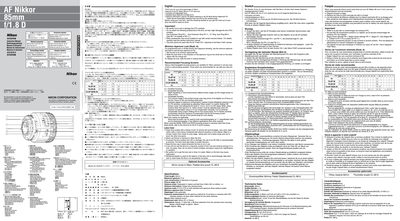

Nikon AF85f1.8D Digital Cameras
This manual provides instructions for the Nikon AF Nikkor 85mm f/1.8D lens, a compact and lightweight lens designed for digital cameras. It highlights key features such as the closest focus distance of 0.85m and the transmission of distance information for 3D Matrix metering and 3D Multi-Sensor Balanced Fill-Flash.
The document details standard accessories included with the lens, such as a 62mm snap-on front lens cap, a rear lens cap, and a screw-in lens hood. It also lists important precautions, specifically warning users not to attach certain accessories like Auto Extension Rings (PK-1, PK-11, K1, BR-4) to avoid damaging the CPU contacts.
Nikon 1.8 D specifications
| Focal length | 85mm |
|---|---|
| Maximum aperture | f/1.8 |
| Lens construction | 6 elements in 6 groups |
| Picture angle | 28"30' |
| Distance scale | 0.85 m (3 ft) to infinity |
| Aperture scale | f/1.8 to f/16 |
| Minimum aperture lock | Provided |
| Diaphragm | Fully automatic |
| Exposure measurement | Full‑aperture method for CPU‑interface cameras; stop‑down for others |
| Mount | Nikon bayonet mount |
| Attachment size | 62 mm (P=0.75 mm) |
| Weight | ≈380 g |
All Nikon 1.8 D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which accessories should not be attached to this lens?
Do not attach Auto Extension Ring PK-1, Auto Extension Ring PK-11, K1 Ring, or Auto Ring BR-4, as they might damage the lens CPU contacts.
How is distance information transmitted from the lens?
Distance information is transmitted instantly from the lens to the camera body for use with 3D Matrix metering or 3D Multi-Sensor Balanced Fill-Flash.
Which accessories should not be attached to the lens to avoid damaging the CPU contacts?
Do not attach Auto Extension Ring PK‑1, Auto Extension Ring PK‑11, K1 Ring, or Auto Ring BR‑4.
What optional accessories are available for this lens?
Optional accessories include 62 mm screw‑in filters and a flexible lens pouch (CL‑0815).
