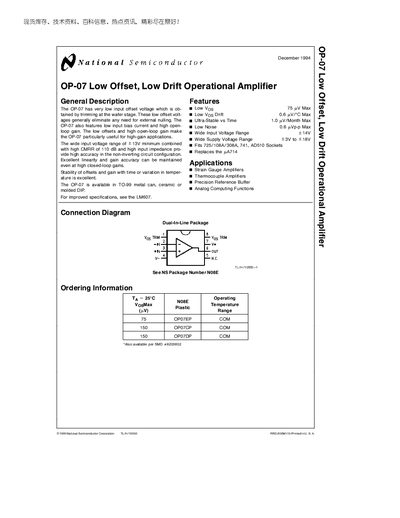

National Semiconductor OP-07 Operational Amplifier Datasheet
The OP-07 operational amplifier offers very low input offset voltage, low input bias current, and high open‑loop gain, making it suitable for high‑gain applications such as strain‑gauge and thermocouple amplifiers. It is available in TO‑99 metal can, ceramic, or molded DIP packages and supports a wide input voltage range.
The datasheet provides absolute maximum ratings, electrical characteristics, test circuits, physical dimensions, and ordering information. It also includes a life‑support policy disclaimer and contact details for National Semiconductor worldwide.
National Semiconductor OP-07 specifications
| Input Offset Voltage (Vos) Max | 75 pV |
|---|---|
| Input Noise Voltage (p‑p) | 0.6 µV |
| Supply Voltage Range | +3 V to +18 V |
| CMRR | 110 dB |
Source: National Semiconductor OP-07 Operational Amplifier Datasheet
All National Semiconductor OP-07 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input offset voltage of the OP-07?
The OP-07 has a maximum input offset voltage of 75 pV.
From: National Semiconductor OP-07 Operational Amplifier Datasheet
What supply voltage range does the OP-07 support?
It operates from +3 V up to +18 V.
From: National Semiconductor OP-07 Operational Amplifier Datasheet
What is the maximum supply voltage for the OP-07?
The OP-07 can operate with a supply voltage up to +18 V.
From: National Semiconductor OP-07 Operational Amplifier Datasheet
Which package types are offered for the OP-07?
The OP-07 is available in TO‑99 metal‑can, ceramic, and molded DIP packages.
From: National Semiconductor OP-07 Operational Amplifier Datasheet
