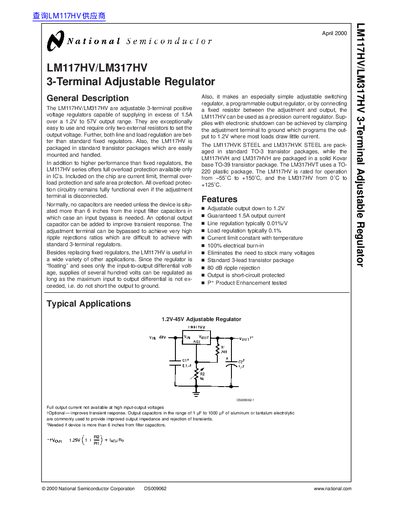

National Semiconductor LM117HV/LM317HV 3-Terminal Adjustable Regulator Datasheet
The LM117HV and LM317HV are adjustable 3-terminal positive voltage regulators capable of supplying in excess of 1.5A over a 1.2V to 57V output range. They are designed to be exceptionally easy to use, requiring only two external resistors to set the output voltage. Both line and load regulation are better than standard fixed regulators, and they include full overload protection such as current limit, thermal overload protection, and safe area protection.
Read onlineNational Semiconductor LM317HV specifications
| Output Current | 1.5A |
|---|---|
| Output Voltage Range | 1.2V to 57V |
| Line Regulation | 0.01%/V |
| Load Regulation | 0.1% |
| Ripple Rejection | 80 dB |
| Operating Temperature (LM117HV) | -55°C to +150°C |
| Operating Temperature (LM317HV) | 0°C to +125°C |
Source: National Semiconductor LM117HV/LM317HV 3-Terminal Adjustable Regulator Datasheet
All National Semiconductor LM317HV documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum output voltage?
The minimum output voltage is 1.2V.
From: National Semiconductor LM117HV/LM317HV 3-Terminal Adjustable Regulator Datasheet
What is the maximum input-to-output voltage differential?
The maximum input-to-output voltage differential is 60V.
From: National Semiconductor LM117HV/LM317HV 3-Terminal Adjustable Regulator Datasheet
What is the minimum output voltage?
The adjustable output can be set down to 1.2V.
From: National semiconductor LM117HV/LM317HV 3-Terminal Adjustable Regulator handbook
Does the device have short-circuit protection?
Yes, the output is protected against short circuits.
From: National semiconductor LM117HV/LM317HV 3-Terminal Adjustable Regulator handbook
What is the maximum output current of the LM117HV?
The LM117HV can deliver up to 1.5 A of output current.
From: National Semiconductor LM117HV/LM317HV Adjustable Regulator Datasheet
What external capacitors are recommended for the LM117HV?
An input bypass capacitor of 0.1 µF disc or 1 µF solid tantalum is recommended, and a 1 µF solid tantalum output capacitor improves stability and ripple rejection.
From: National Semiconductor LM117HV/LM317HV Adjustable Regulator Datasheet
