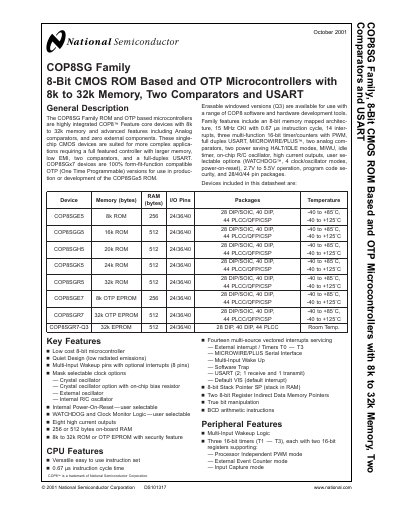

National Semiconductor COP8SG Family Datasheet
This document describes the COP8SG Family of 8-bit CMOS ROM and OTP based microcontrollers. These devices are highly integrated single-chip solutions with 8k to 32k memory, designed for complex applications requiring a full-featured controller with low EMI and zero external components.
The datasheet details key features including an 8-bit memory mapped architecture, up to 15 MHz clock speed, multiple timer/counters with PWM capabilities, and two analog comparators. It covers specific device variants such as the COP8SGE5 (8k ROM) and COP8SGR7 (32k OTP EPROM), along with their available packages and temperature ranges.
National Semiconductor COP8SG specifications
| Memory Size | 8k to 32k |
|---|---|
| Clock Speed | 15 MHz |
| Operating Voltage | 2.7V to 5.5V |
| RAM Size | 256 or 512 bytes |
All National Semiconductor COP8SG documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the instruction cycle time for these devices?
The devices operate with a 0.67 us instruction cycle time when using a 15 MHz clock.
What is the operating voltage range of the COP8SG microcontrollers?
They operate from 2.7 V up to 5.5 V.
How many analog comparators are included?
Each device includes two analog comparators.
What is the operating voltage range of COP8SG devices?
COP8SG microcontrollers operate from 2.7 V to 5.5 V.
From: National Semiconductor COP8SG Family 8‑Bit Microcontroller Datasheet
How many analog comparators are included?
Each COP8SG device provides two analog comparators.
From: National Semiconductor COP8SG Family 8‑Bit Microcontroller Datasheet
