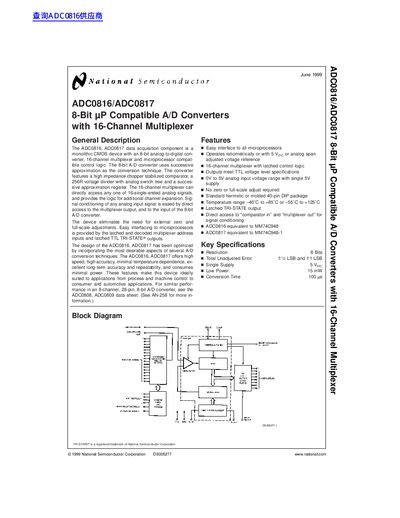

National Semiconductor ADC0816/ADC0817 8-Bit P Compatible A/D Converters with 16-Channel Multiplexer handbook

ADC0816/ADC0817 is a 8-Bit µP Compatible A/D Converters with 16-Channel Multiplexer

Brand: National Semiconductor
Category: Data Converters
Document type: Datasheet
Language: English
Pages: 13
File format: PDF
File size: 253 KB
Published: 04 July, 2012
Updated: 30 September, 2023
Model: ADC0816
MD5 checksum: 6206A6590D28872595F01D5EEDAC0BB0
PDF: National Semiconductor ADC0816/ADC0817 8-Bit P Compatible A/D Converters with 16-Channel Multiplexer handbook PDF

About this manual

The ADC0816 and ADC0817 are monolithic CMOS data acquisition components that combine an 8-bit analog-to-digital converter with a 16-channel multiplexer. The device utilizes successive approximation for conversion and includes latched TTL TRI-STATE outputs for easy interfacing with microprocessors. It eliminates the need for external zero and full-scale adjustments.

What's inside

General Description
Features
Key Specifications
Ordering Information
Absolute Maximum Ratings
Electrical Characteristics
Functional Description
Converter Characteristics

Specifications

Resolution	8 Bits
Total Unadjusted Error	+14 LSB
Supply Voltage	5 V
Low Power Consumption	15 mW
Temperature Range	-40°C to +85°C

Frequently asked questions

Does the device require external zero or full-scale adjustments?

No, the device eliminates the need for external zero and full-scale adjustments.

How many channels does the multiplexer support?

The device features a 16-channel multiplexer.
