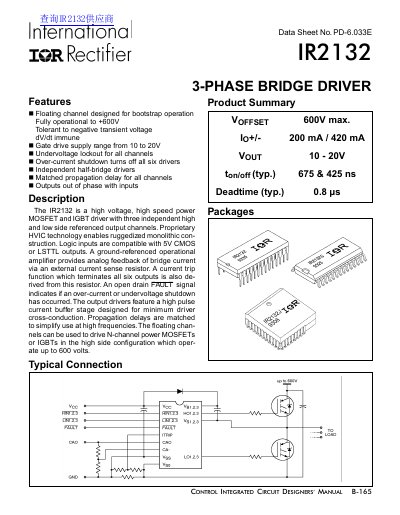

International Rectifier IR2130/IR2132 (J)(S) handbook(1)
The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic. A ground-referenced operational amplifier provides analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs is also derived from this resistor. An open drain FAULT signal indicates if an over-current or undervoltage shutdown has occurred. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.
Read onlineInternational Rectifier IR2132 specifications
| Floating channel for bootstrap operation | Yes |
|---|---|
| Maximum operating voltage | +600 V |
| Gate‑drive supply voltage range | 10 V – 20 V |
| Undervoltage lockout | Enabled for all channels |
| Over‑current shutdown | Turns off all six drivers |
| Typical turn‑on propagation delay | 675 ns |
| Typical turn‑off propagation delay | 425 ns |
| Package options | 28‑lead PDIP, 28‑lead SOIC, 44‑lead PLCC |
| Ambient temperature range | -40 °C to 125 °C |
| Power dissipation (28‑lead DIP) | 1.5 W |
Source: International Rectifier IR2132 3-Phase Bridge Driver Datasheet
All International Rectifier IR2132 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- International Rectifier IR2130/IR2132 (J)(S) handbook(1)
- International Rectifier IR2130/IR2132 (J)(S) handbook
- International Rectifier IR2130/IR2132(J)(S) (PbF) handbook
- International Rectifier IR2132 3-Phase Bridge Driver Datasheet 21 p
- lnternational IOR Rectifier IR2130/IR2132(J)(S) (PbF) 3-PHASE BRIDGE DRIVER handbook 26 p
Questions answered in these manuals
What is the maximum supply voltage for the IR2132?
The IR2132 can operate up to +600 V.
From: International Rectifier IR2132 3-Phase Bridge Driver Datasheet
How many independent driver channels does the IR2132 provide?
It provides three independent high‑ and low‑side referenced output channels.
From: International Rectifier IR2132 3-Phase Bridge Driver Datasheet
What is the maximum floating supply voltage for the IR2130/IR2132 driver?
The driver can operate with a floating supply voltage up to 600 V.
From: lnternational IOR Rectifier IR2130/IR2132(J)(S) (PbF) 3-PHASE BRIDGE DRIVER handbook
Which package types are offered for the IR2130/IR2132?
The device is available in 28‑lead PDIP, 28‑lead SOIC (wide body), and 44‑lead PLCC without 12 leads.
From: lnternational IOR Rectifier IR2130/IR2132(J)(S) (PbF) 3-PHASE BRIDGE DRIVER handbook
