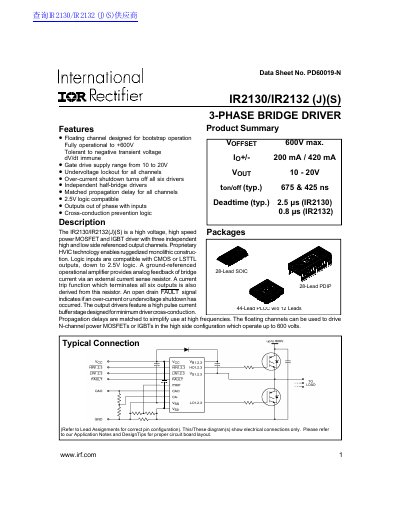

The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic. A ground-referenced operational amplifier provides analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs is also derived from this resistor. An open drain FAULT signal indicates if an over-current or undervoltage shutdown has occurred. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.
The IR2130/IR2132 (J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized monolithic construction suitable for driving N-channel power devices up to 600 volts.
| High Side Floating Supply Voltage (Max) | 625 V |
|---|---|
| Logic Input Compatibility | 2.5V |
| Turn-On Propagation Delay (Typ) | 675 ns |
| Deadtime (IR2130 Typ) | 2.5 us |
| Cross-conduction prevention logic (IR2132 Typ) | 0.8 ps |
| Junction Temperature (Max) | 150 °C |
The device supports a high side floating offset voltage up to 600V.
The gate drive supply operates from 10V to 20V.
