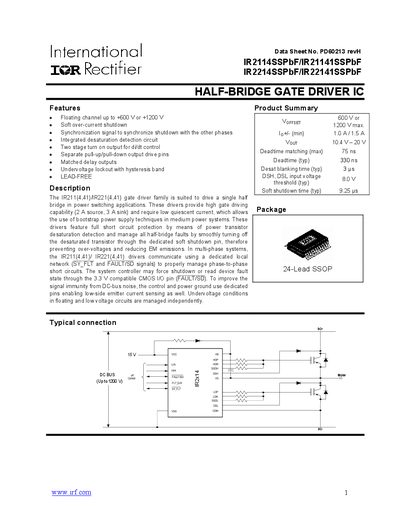

INTERNATIONAL RECTIFIER Data Sheet No. PD60213 revH IR2114SSPbF/IR21141SSPbF IR2214SSPbF/IR22141SSPbF
The IR2114/IR21141 and IR2214/IR22141 SSPbF families are half‑bridge gate driver ICs designed for power‑switching applications. They provide high gate‑driving capability (2 A source, 3 A sink) and feature soft over‑current shutdown, desaturation detection, and undervoltage lockout.
Key specifications include floating channel voltages up to +1200 V, dead‑time matching of 75 ns (max) and 330 ns (typ), and a 24‑lead SSOP package. The devices support bootstrap operation, fault communication via SY_FLT and FAULT/SD pins, and are lead‑free compliant.
International Rectifier IR2114SSPBF specifications
| Floating channel voltage | +600 V or +1200 V |
|---|---|
| Source current capability | 2 A |
| Sink current capability | 3 A |
| Deadtime matching (max) | 75 ns |
| Deadtime (typ) | 330 ns |
| Desat blanking time (typ) | 3 µs |
| Soft shutdown time (typ) | 9.25 µs |
| Package type | 24‑Lead SSOP |
All International Rectifier IR2114SSPBF documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum floating channel voltage?
The device supports a floating channel voltage up to +1200 V.
What are the source and sink current capabilities?
It can source 2 A and sink 3 A of gate current.
What is the maximum floating channel voltage for the IR2114/IR2214 drivers?
The drivers support a floating channel voltage of up to +600 V or +1200 V.
From: International Rectifier IR2114SSPbF/IR2214SSPbF Half-Bridge Gate Driver IC Datasheet
What is the typical deadtime for these gate drivers?
The typical deadtime is 330 ns.
From: International Rectifier IR2114SSPbF/IR2214SSPbF Half-Bridge Gate Driver IC Datasheet
