International Rectifier IR2113 Manuals

Key facts

Brand: International Rectifier
Model: IR2113
Industry: Industrial
Documents: 2
Languages: EN
Last added: 2012-07-10

Start here

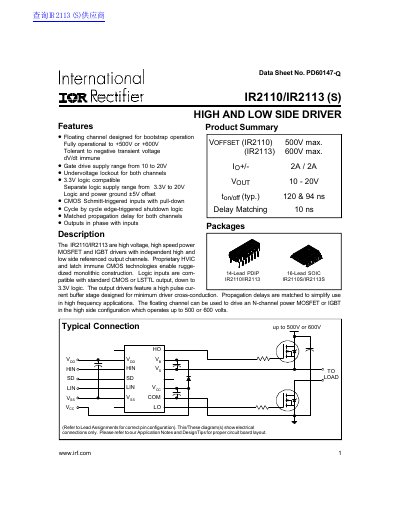

International Rectifier IR2110/IR2113 (S) High and Low Side Driver Datasheet

Datasheet 15 pages · 144 KB · EN

The International Rectifier IR2110/IR2113 (S) are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. These devices utilize proprietary HVIC and latch immune CMOS technologies to provide ruggedized monolithic construction suitable for high frequency applications.

Read online

International Rectifier IR2113 specifications

High side floating supply voltage (IR2110)	500V
High side floating supply voltage (IR2113)	600V
Gate drive supply range	10 to 20V
Logic supply voltage range	3.3V to 20V
Turn-on propagation delay (typical)	120 ns
Turn-off propagation delay (typical)	94 ns
Delay matching (HS & LS)	10 ns

Source: International Rectifier IR2110/IR2113 (S) High and Low Side Driver Datasheet

All International Rectifier IR2113 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the maximum high side floating supply voltage for the IR2110?

The maximum high side floating supply voltage for the IR2110 is 500V.

From: International Rectifier IR2110/IR2113 (S) High and Low Side Driver Datasheet

What is the maximum high side floating supply voltage for the IR2113?

The maximum high side floating supply voltage for the IR2113 is 600V.

From: International Rectifier IR2110/IR2113 (S) High and Low Side Driver Datasheet

Is the device compatible with 3.3V logic inputs?

Yes, the logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic.

From: International Rectifier IR2110/IR2113 High and Low Side Driver Data Sheet

What is the typical turn-on propagation delay?

The typical turn-on propagation delay is 120 ns for the IR2110 and 94 ns for the IR2113.
