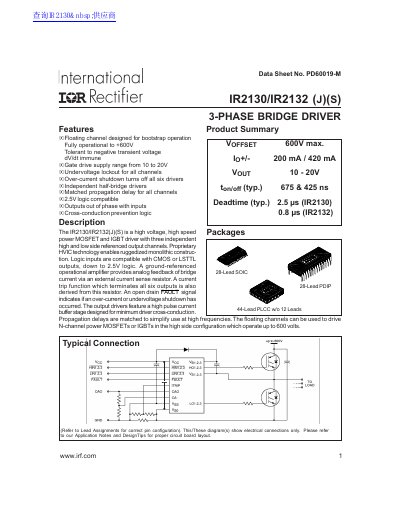

International Rectifier IR2130/IR2132 3-Phase Bridge Driver Datasheet
The document describes the IR2130/IR2132 (J)(S), a high voltage, high speed power MOSFET and IGBT driver featuring three independent high and low side referenced output channels. Utilizing proprietary HVIC technology, these devices are designed for bootstrap operation with floating channels capable of driving N-channel power MOSFETs or IGBTs up to 600 volts.
Read onlineInternational Rectifier IR2130 specifications
| Gate drive supply range | 10 to 20V |
|---|---|
| Undervoltage lockout for all channels | 10 - 20V |
| Logic Input Voltage Compatibility | down to 2.5V |
Source: International Rectifier IR2130/IR2132 3-Phase Bridge Driver Datasheet
All International Rectifier IR2130 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- International Rectifier IR2130/IR2132 3-Phase Bridge Driver Datasheet 24 p
- International Rectifier IR2130/IR2132 3-Phase Bridge Driver Datasheet 24 p
- International Rectifier IR2130/IR2132(J)(S) 3-Phase Bridge Driver Datasheet 26 p
- lnternational IOR Rectifier IR2130/IR2132(J)(S) (PbF) 3-PHASE BRIDGE DRIVER handbook 26 p
Questions answered in these manuals
What is the maximum high-side floating offset voltage for this driver?
The device can tolerate a maximum high-side floating offset voltage of 600V.
From: International Rectifier IR2130/IR2132 3-Phase Bridge Driver Datasheet
What is the typical deadtime for the IR2130 model?
The typical deadtime for the IR2130 is 2.5 microseconds.
From: International Rectifier IR2130/IR2132 3-Phase Bridge Driver Datasheet
What is the maximum high side floating offset voltage?
The device supports a high side floating offset voltage up to 600V.
From: International Rectifier IR2130/IR2132 3-Phase Bridge Driver Datasheet
What is the gate drive supply range?
The gate drive supply operates from 10V to 20V.
From: International Rectifier IR2130/IR2132 3-Phase Bridge Driver Datasheet
What is the logic input compatibility?
Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic.
From: International Rectifier IR2130/IR2132(J)(S) 3-Phase Bridge Driver Datasheet
What happens during over-current shutdown?
Over-current shutdown turns off all six drivers.
From: International Rectifier IR2130/IR2132(J)(S) 3-Phase Bridge Driver Datasheet
