Start here

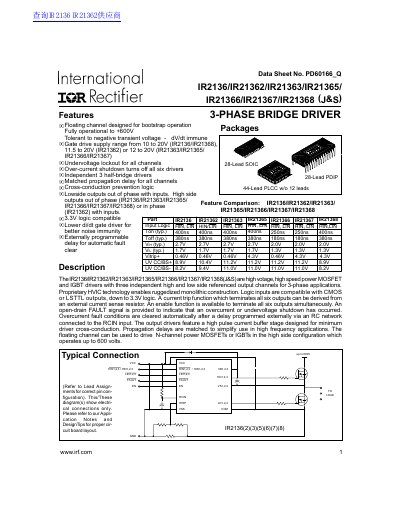

international IOR Rectifier IR2136/IR21362/IR21363/IR21365/ IR21366/IR21367/IR21368 (J S) (PbF) handbook
The IR2136/IR21362/IR21363/IR21365/IR21366/IR21367/IR21368 (J&S) are high voltage, high speed power MOSFET and IGBT drivers with three independent high and low side referenced output channels for 3-phase applications. These devices feature proprietary HVIC technology enabling ruggedized monolithic construction and are fully operational to +600V.
Read onlineInternational Rectifier IR21365 specifications
| Operating Voltage | up to +600V |
|---|---|
| Logic Compatibility | 3.3V |
| Supply Range (IR2136) | 10 to 20V |
| Supply Range (IR21362) | 11.5 to 20V |
| Supply Range (IR21363) | 12 to 20V |
| Junction Temperature | 150°C |
| Storage Temperature | -55 to 150°C |
All International Rectifier IR21365 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- international IOR Rectifier IR2136/IR21362/IR21363/IR21365/ IR21366/IR21367/IR21368 (J S) (PbF) handbook 35 p
- International Rectifier IR2136/IR21362/IR21363/IR21365/ IR21366/IR21367/IR21368 (J S) (PbF) handbook 36 p
- International Rectifier IR2136/IR21362/IR21363/IR21365/IR21366/IR21367/IR21368 3-Phase Bridge Driver Datasheet 36 p
Questions answered in these manuals
What is the gate drive supply range for the IR2136?
The gate drive supply range for the IR2136 is from 10 to 20V.
What is the maximum operating voltage for this driver?
The device is fully operational to +600V.
What is the gate drive supply range for IR2136 and IR2138?
The gate drive supply range is from 10 to 20V.
From: International Rectifier IR2136/IR21362/IR21363/IR21365/ IR21366/IR21367/IR21368 (J S) (PbF) handbook
How many independent output channels do these drivers have?
They feature three independent high and low side referenced output channels.
From: International Rectifier IR2136/IR21362/IR21363/IR21365/ IR21366/IR21367/IR21368 (J S) (PbF) handbook
What is the maximum voltage the driver can handle?
The floating channel is fully operational up to +600 V.
What is the gate drive supply voltage range?
It ranges from 10 V to 20 V for IR2136/IR21368, 11.5 V to 20 V for IR21362, and 12 V to 20 V for the other variants.
