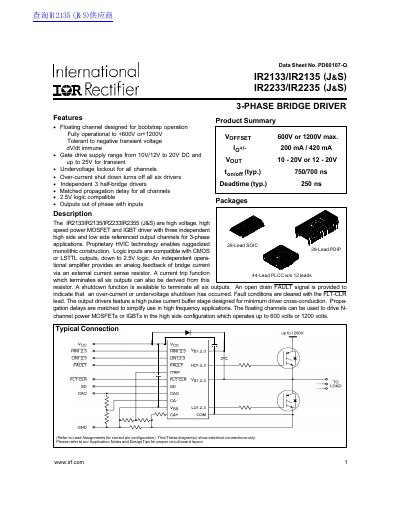

International Rectifier IR2133/IR2135/IR2233/IR2235 3-Phase Bridge Driver Datasheet
The IR2133/IR2135/IR2233/IR2235 (J&S) are high voltage, high speed power MOSFET and IGBT drivers designed for three-phase applications. These devices feature three independent high side and low side referenced output channels and utilize proprietary HVIC technology for a ruggedized 28-Lead SOIC monolithic construction. They are fully operational to +600V or +1200V and include features such as undervoltage lockout, over-current shut down, and an independent operational amplifier for analog feedback of bridge current.
Read onlineInternational Rectifier IR2133 specifications
| Gate drive supply range | 10V/12V to 20V DC |
|---|---|
| Deadtime | 250 ns (Typ.) |
| Logic input compatibility | 2.5V |
Source: International Rectifier IR2133/IR2135/IR2233/IR2235 3-Phase Bridge Driver Datasheet
All International Rectifier IR2133 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum high side floating supply voltage for the IR2233/IR2235?
The maximum high side floating supply voltage for the IR2233/IR2235 is 1200V.
From: International Rectifier IR2133/IR2135/IR2233/IR2235 3-Phase Bridge Driver Datasheet
What logic voltage level is compatible with these drivers?
The drivers are compatible with 2.5V logic.
From: International Rectifier IR2133/IR2135/IR2233/IR2235 3-Phase Bridge Driver Datasheet
What is the maximum offset supply voltage for the IR2133/IR2135?
The maximum offset supply voltage for the IR2133/IR2135 series is 600V.
From: International Rectifier IR2133/IR2135/IR2233/IR2235 3-Phase Bridge Driver Datasheet
What is the typical deadtime for these drivers when used with 1200V?
The typical deadtime is 250 ns.
From: International Rectifier IR2133/IR2135/IR2233/IR2235 3-Phase Bridge Driver Datasheet
What is the maximum high‑side floating supply voltage for IR2133?
IR2133 can handle up to 600 V on the high‑side floating supply.
How many independent half‑bridge drivers does the IR2133/IR2135 family provide?
The family provides three independent half‑bridge drivers, i.e., six driver channels (three high‑side and three low‑side).
