International Rectifier IR2136 Manuals

Key facts

Brand: International Rectifier
Model: IR2136
Industry: Industrial
Documents: 4
Languages: EN
Last added: 2012-07-10

Start here

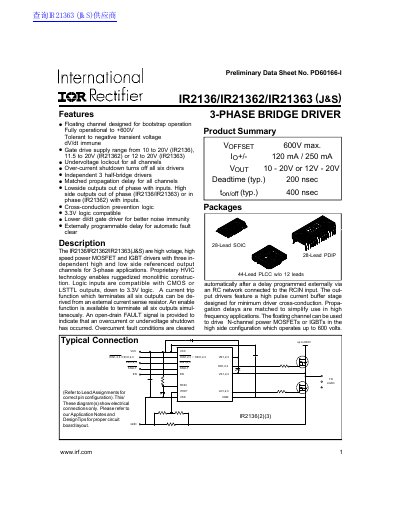

Datasheetinternational IOR Rectifier IR2136/IR21362/IR21363 (J S) handbook

international IOR Rectifier IR2136/IR21362/IR21363 (J S) handbook

Datasheet

IR2136/IR21362/IR21363 are high voltage, high speed power MOSFET and IGBT drivers with three independent high and low side referenced output channels for 3-phase applications.

Read online

International Rectifier IR2136 specifications

Gate drive supply range	10‑20 V (IR2136/IR21368), 11.5‑20 V (IR21362), 12‑20 V (IR21363/IR21365/IR21366/IR21367)
Maximum floating channel voltage	+600 V
Undervoltage lockout	Enabled for all channels
Over‑current shutdown	Turns off all six drivers
Turn‑on propagation delay (ton)	300 ns typical for IR2136

Source: International Rectifier IR2136/IR21362/IR21363/IR21365/IR21366/IR21367/IR21368 3-Phase Bridge Driver Datasheet

All International Rectifier IR2136 documents by type

Datasheet 4

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the maximum voltage the driver can handle?

The floating channel is fully operational up to +600 V.

From: International Rectifier IR2136/IR21362/IR21363/IR21365/IR21366/IR21367/IR21368 3-Phase Bridge Driver Datasheet

What is the gate drive supply voltage range?

It ranges from 10 V to 20 V for IR2136/IR21368, 11.5 V to 20 V for IR21362, and 12 V to 20 V for the other variants.
