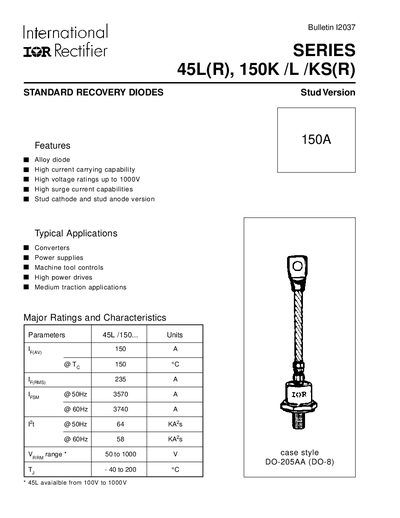

International Rectifier 45L(R) 150K/L/KS(R) Series Standard Recovery Diodes Datasheet
This document is a datasheet for the International Rectifier 45L(R), 150K/L, and KS(R) series of standard recovery diodes in stud versions. The devices feature alloy construction with high current carrying capability and voltage ratings up to 1000V. They are designed for applications including converters, power supplies, machine tool controls, and high power drives.
Read onlineInternational Rectifier 150K specifications
| Max. average forward current | 150 A |
|---|---|
| Max. RMS forward current | 235 A |
| Max. voltage rating | 1000 V |
| Max. junction operating temperature | 200 °C |
| Max. thermal resistance, junction-to-case | 0.25 K/W |
| Max. thermal resistance, case-to-heatsink | 0.10 K/W |
| Max. forward voltage drop | 1.33 V |
Source: International Rectifier 45L(R) 150K/L/KS(R) Series Standard Recovery Diodes Datasheet
All International Rectifier 150K documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for these diodes?
Typical applications include converters, power supplies, machine tool controls, high power drives, and medium traction applications.
From: International Rectifier 45L(R) 150K/L/KS(R) Series Standard Recovery Diodes Datasheet
What is the maximum junction operating temperature?
The maximum junction operating temperature is 200 °C.
From: International Rectifier 45L(R) 150K/L/KS(R) Series Standard Recovery Diodes Datasheet
