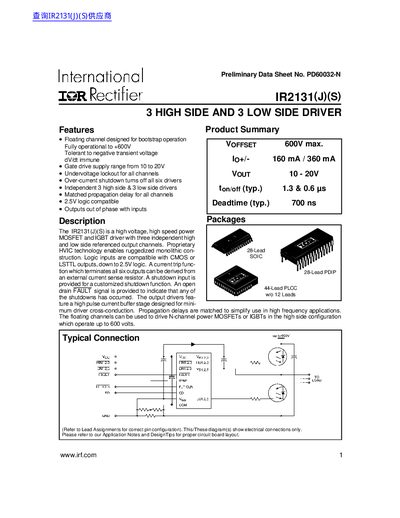

International Rectifier IR2131(J)(S) High Side and Low Side Driver Datasheet
The International Rectifier IR2131(J)(S) is a high voltage, high speed power MOSFET and IGBT driver featuring three independent high and low side referenced output channels. It utilizes proprietary HVIC technology for ruggedized monolithic construction and includes logic inputs compatible with CMOS or LSTTL outputs down to 2.5V.
The device features floating channels designed for bootstrap operation, fully operational up to +600V VOFFSET. Key characteristics include tolerance to negative transient voltage, a gate drive supply range from 10 to 20V, undervoltage lockout for all channels, and an over-current shutdown function that turns off all six drivers.
International Rectifier IR2131 specifications
| High Side Floating Supply Voltage (Max) | 625 V |
|---|---|
| Logic Input Voltage Compatibility | down to 2.5V |
| Gate Drive Supply Range | 10 to 20 V |
| Undervoltage Lockout Threshold (Typ) | 8.7 V |
| Turn-On Propagation Delay (Typ) | 1.3 us |
| Deadtime (Typ) | 700 ns |
Source: International Rectifier IR2131(J)(S) High Side and Low Side Driver Datasheet
All International Rectifier IR2131 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum high side floating offset voltage?
The device supports a high side floating offset voltage up to 600V.
From: International Rectifier IR2131(J)(S) High Side and Low Side Driver Datasheet
How many independent output channels does the IR2131(J)(S) have?
It has three independent high side and three low side referenced output channels.
From: International Rectifier IR2131(J)(S) High Side and Low Side Driver Datasheet
What is the maximum voltage rating for the high side floating supply?
The device is fully operational to +600V, with an absolute maximum rating of 525V for the high side floating supply voltage.
From: International Rectifier IR2131 High Voltage Driver Datasheet
Does the IR2131 include protection against over-current?
Yes, it features a current trip function which terminates all six outputs and an open drain FAULT signal to indicate shutdown.
From: International Rectifier IR2131 High Voltage Driver Datasheet
