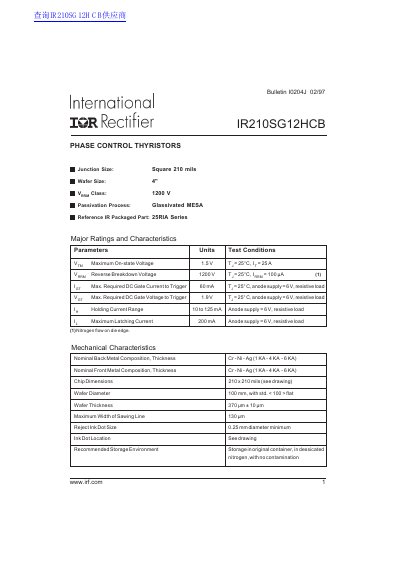

International Rectifier IR210SG12HCB Phase Control Thyristor Datasheet
This document is a technical datasheet for the International Rectifier IR210SG12HCB, a square junction size phase control thyristor. The device features a 1200V reverse breakdown voltage rating and utilizes a glassivated MESA passivation process with silver metallization on both anode and cathode.
Read onlineInternational Rectifier IR210SG12HCB specifications
| Reverse Breakdown Voltage (Vary) | 1200 V |
|---|---|
| Maximum Required DC Gate Current to Trigger | 60 mA |
| Maximum Required DC Gate Voltage to Trigger | 1.9 V |
| Holding Current Range | 10 to 125 mA |
| Maximum Latching Current | 200 mA |
Source: International Rectifier IR210SG12HCB Phase Control Thyristor Datasheet
All International Rectifier IR210SG12HCB documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum reverse breakdown voltage of the IR210SG12HCB?
The maximum reverse breakdown voltage is 1200V.
From: International Rectifier IR210SG12HCB Phase Control Thyristor Datasheet
What is the maximum on-state voltage at 25°C?
The maximum on-state voltage is 1.5V.
From: International Rectifier IR210SG12HCB Phase Control Thyristor Datasheet
What is the voltage class of the IR210SG12HCB?
The device has a Voltage Class of 1200 V.
From: International Rectifier IR210SG12HCB Phase Control Thyristor Datasheet
Is the IR210SG12HCB an SCR or another type?
It is a Solderable SCR (S).
From: International Rectifier IR210SG12HCB Phase Control Thyristor Datasheet
