Key facts
- Brand
- Intel
- Model
- D201GLY2
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-03-22
Start here

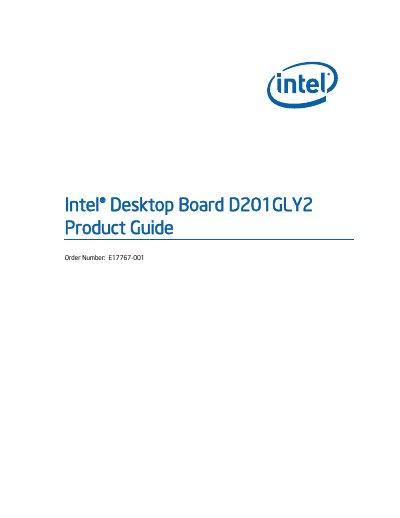

Intel D201GLY2 Desktop Board Product Guide
This guide describes the Intel D201GLY2 Mini‑ITX desktop board, its supported Intel® Celeron processor, DDR2 memory up to 1 GB, and integrated SiS graphics and audio components. It also lists the board’s I/O options, including six USB 2.0 ports, SATA, IDE, LAN, and audio connectors.
The document includes detailed installation instructions, BIOS update procedures, safety and EMC compliance statements, and a summary of certification marks required for global markets. It is intended for technically qualified personnel installing or servicing the board.
Intel D201GLY2 specifications
| Form Factor | Mini‑ITX (171.45 mm × 171.45 mm) |
|---|---|
| Processor | Intel® Celeron® |
| Main Memory | One 240‑pin DDR2 DIMM socket, up to 1 GB |
| Chipset | SiS662 Northbridge, SiS964 Southbridge |
| Graphics | SiS Integrated Mirage 1‑engine |
| Audio Codec | ADI AD1888 (AC’97 two‑channel) |
| USB Ports | Six USB 2.0 ports (2 rear, 4 via headers) |
| IDE Interface | ATA‑100/66 (two devices) |
| Serial ATA | Two SATA 1.5 Gb/s ports |
| LAN | 10/100 Mb/s Ethernet |
All Intel D201GLY2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which operating systems are supported by the D201GLY2 motherboard?
It supports Microsoft Windows Vista Starter Edition, Windows XP Professional, Windows XP Home, and Windows XP Starter Edition.
How many USB 2.0 ports does the motherboard provide?
The board provides six USB 2.0 ports – two on the rear panel and four on front connectors.
