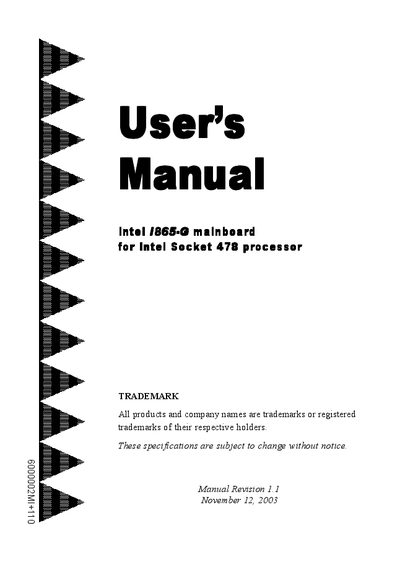

Intel i865-G mainboard user manual
This manual covers the Intel 865-G (Springdale‑G) chipset motherboard designed for Intel Socket 478 processors. It describes the board's features, including the GMCH and ICH5/R components, AGP 3.0 support, Ultra ATA/66/100, Serial ATA, and optional LAN.
The document guides users through package contents, CPU installation, jumper settings, memory configuration, expansion slots, BIOS setup, hardware monitoring, and recovery procedures, offering detailed instructions for both setup and troubleshooting.
| Processor support | Intel Socket 478 processors (e.g., Pentium 4) |
|---|---|
| Processor bus speed | 400/533/800 MHz |
| Memory type and capacity | Dual‑channel DDR SDRAM 266/333/400 MHz up to 2 GB |
| AGP interface | 8X/4X 1.5 V AGP (AGP 3.0, max 2.1 GB/s) |
| IDE controller | Ultra ATA/66/100 Bus Master IDE |
| Serial ATA support | Serial ATA (SATA) interface, software compatible with Parallel ATA |
The board supports Intel Socket 478 processors, such as Intel Pentium 4 CPUs.
Yes, it supports 1.5 V AGP 8X/4X cards in compliance with the AGP 3.0 specification.
Up to 2 GB of DDR SDRAM can be installed using dual‑channel 266/333/400 MHz modules.
Yes, the board includes a Serial ATA (SATA) interface that is software compatible with Parallel ATA.
