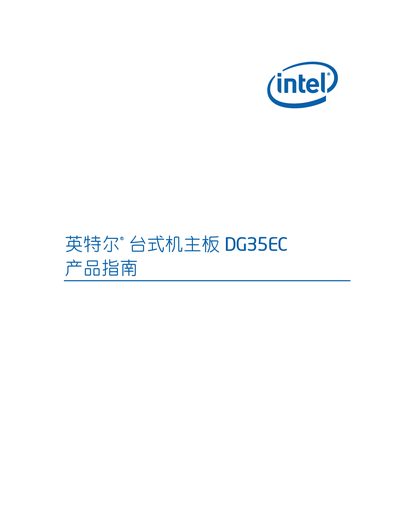

Intel® Desktop Board DG35EC Product Guide, including FCC Compliance Statement, Canadian Department of Communications Standard Statement, Disclaimer, etc.
This product guide is intended for qualified technicians who need detailed information about the Intel DG35EC desktop motherboard, including board layout, component installation, BIOS updating, and regulatory compliance. It is not aimed at general consumers.
The document covers the motherboard’s functional features, hardware specifications, installation procedures for processors, memory, and expansion cards, BIOS configuration, error messages, power‑management functions, and the various standards and certifications the product meets. This manual is written in Chinese.
| Form factor | microATX (243.84 mm × 243.84 mm) |
|---|---|
| Processor socket | LGA775 |
| Memory slots | 4 × 240‑pin DDR2 DIMM slots |
| Maximum memory | 8 GB |
| Chipset | Intel G35 Express |
| Integrated graphics | Intel GMA X3500 |
| Audio codec | RealTek ALC888S |
| USB ports | Up to 10 USB 2.0 ports |
| SATA ports | 4 × SATA III (3 Gb/s) |
It uses an LGA775 socket for Intel processors.
The board has four 240‑pin DDR2 DIMM slots and supports up to 8 GB of system memory.
It includes integrated Intel GMA X3500 graphics or can use an optional PCI Express x16 graphics card.
