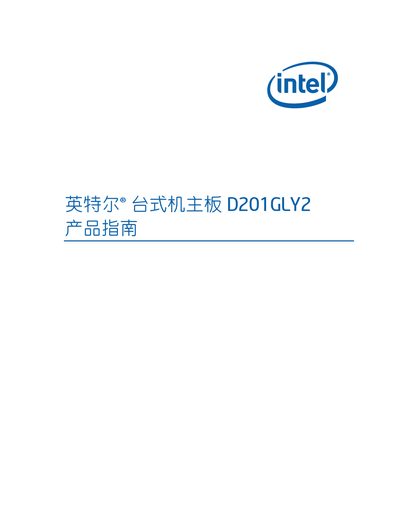

Intel® Desktop Motherboard D201GLY2 Product Guide, introduces the features and characteristics of this motherboard, including FCC Compliance Statement, Canadian Department of Communications (Canadian Department of Communications) Compliance Statement etc.
This guide describes the main features of the Intel D201GLY2 Mini‑ITX desktop motherboard, including supported processors, memory, chipset, graphics, audio, I/O, LAN, and power‑management functions. It also outlines the required installation steps, BIOS update procedures, and safety and EMC compliance details.
The document is intended for qualified technical personnel and includes tables of specifications, wiring diagrams, and regulatory certification marks for use in home, commercial, and educational PC environments. This manual is written in Chinese.
| Form factor | Mini‑ITX (171.45 mm × 171.45 mm) |
|---|---|
| Supported processor | Intel® Celeron® |
| Chipset | SiS662 northbridge, SiS964 southbridge |
| Graphics engine | SiS Integrated Mirage 1 |
| Audio codec | ADI AD1888, AC’97 dual‑channel |
| USB ports | 6 × USB 2.0 (2 rear, 4 front) |
| IDE interface | ATA‑100/66, two devices |
| SATA ports | 2 × SATA (1.5 Gb/s) |
| LAN | 10/100 Mbps Ethernet |
It supports Microsoft Windows Vista Starter Edition, Windows XP Professional, Windows XP Home, and Windows XP Starter Edition.
The board provides six USB 2.0 ports – two on the rear panel and four on front connectors.
The motherboard supports up to 1 GB of DDR2 SDRAM using a single 240‑pin DIMM slot.
It uses the Mini‑ITX form factor (171.45 mm × 171.45 mm).
