Key facts
- Brand
- Haier
- Model
- Q-B-J-1
- Category
- Water heater
- Industry
- Appliances
- Documents
- 5
- Languages
- ZH
- Last added
- 2012-02-27
Start here

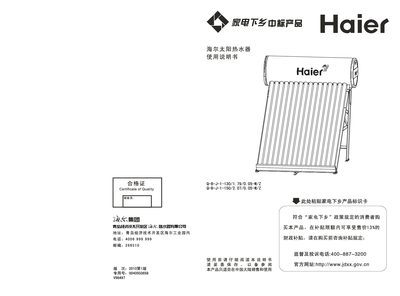

Haier Q-B-J-1-130/1.79/0.05-W/Z Water Heater User Manual
This manual describes the Haier Q‑B‑J‑1‑130/1.79/0.05‑W/Z water heater, its construction, key features such as a SUS304 stainless‑steel tank and a 130 L capacity, and the model naming scheme. It also lists the warranty terms, with one‑year coverage for the whole unit and three‑year coverage for major components.
The document includes step‑by‑step installation instructions, pipe‑insulation guidelines for cold regions, safety precautions, technical parameters, and a troubleshooting section that helps resolve common issues like no water flow or vacuum‑tube problems. This manual is written in Chinese.
Haier Q-B-J-1 specifications
| Water tank capacity | 130 L – 270 L (model dependent) |
|---|---|
| Tank material | SUS304 stainless steel |
| Rated pressure | 0.05 MPa |
| Dimensions (L×W×H) | 1.79 m × 0.05 m (example for 130 L model) |
Source: Haier Sun water heater Q-B-J-1-130/1.79/0.05-D/H Q-B-J-1-150/2.07/0.05-D/H series Manual
All Haier Q-B-J-1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Haier Q-B-J-1-130/1.79/0.05-W/Z Water Heater User Manual 8 p
- Haier Sun water heater Q-B-J-1-130/1.79/0.05-W/E Manual
- Haier Sun water heater Q-B-J-1-130/1.79/0.05-D/H Q-B-J-1-150/2.07/0.05-D/H series Manual 8 p
- Haier Sun water heater Q-B-J-1-130/1.79/0.05-D/H Q-B-J-1-150/2.07/0.05-D/H Manual 2 p
- Haier Sun water heater Q-B-J-1-110/1.86/0.05-W/CQ-B-J-1-125/2.13/0.05-W/C Q-B-J-1-150/2.53/0.05-W/C Manual 2 p
Questions answered in these manuals
How do I manually fill the tank when the controller fails?
Press the manual fill valve, open the overflow pipe, and fill the tank until water flows out of the overflow.
From: Haier Sun water heater Q-B-J-1-130/1.79/0.05-D/H Q-B-J-1-150/2.07/0.05-D/H series Manual
Can the hot water from the solar water heater be used as drinking water?
No, the manual states that the hot water should not be used directly as drinking water.
From: Haier Sun water heater Q-B-J-1-130/1.79/0.05-D/H Q-B-J-1-150/2.07/0.05-D/H Manual
What is the recommended installation orientation for the solar water heater?
The heater should face south with a 10° east or 15° west offset.
From: Haier Sun water heater Q-B-J-1-130/1.79/0.05-D/H Q-B-J-1-150/2.07/0.05-D/H Manual
What should I do if the water pressure is insufficient?
Install a water‑pressure boosting device to ensure normal water flow.
How many glass vacuum tubes are supplied for each model?
The 110 L model includes 14 tubes, the 125 L model includes 16 tubes, and the 150 L model includes 19 tubes.
