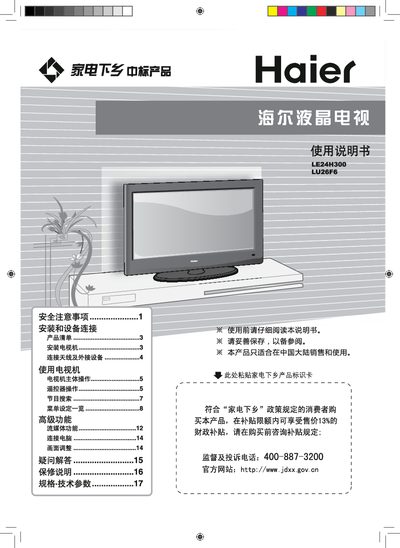

Haier LE24H300 LCD TV User Manual
This manual provides safety precautions, installation steps, connection diagrams, and operating instructions for the Haier LE24H300 LCD television. It also includes information about the optional LU26F6 model where relevant.
The guide covers how to mount the TV, connect antennas and external devices, use the remote control, adjust picture and sound settings, and perform basic troubleshooting. Technical specifications such as power consumption, dimensions, and supported video formats are listed at the end. This manual is written in Chinese.
Haier LE24H300 specifications
| Model | LE24H300 |
|---|---|
| Power Consumption | 30 W |
| Dimensions (with base) | 585 mm × 170 mm × 410 mm |
| Supported Video Input Formats | AV (CVBS), YPbPr, HDMI, DVI, PC, USB |
| Power Supply | 220 V ~ 50 Hz |
| Color System | PAL, NTSC, NTSC‑4.43, SECAM |
All Haier LE24H300 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What is the power consumption of the LE24H300 model?
The LE24H300 model consumes 30 W of power.
What is the screen size of the Haier LE24H300 TV?
The screen measures 24 inches diagonally.
What is the maximum brightness of the display?
The display brightness is rated at 250 cd/m².
