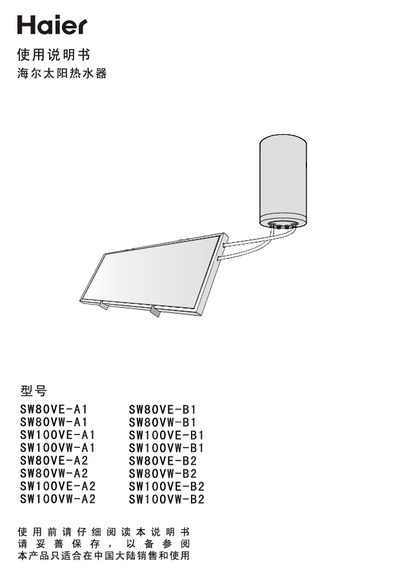

Haier SW80/SW100 Series Solar Water Heater User Manual
This manual provides safety precautions, product features, and detailed installation instructions for Haier's SW80 and SW100 solar water heater series. It covers proper mounting of the collector and water tank, electrical connections, and required insulation measures.
Technical parameters such as tank capacity, rated pressure, power consumption and wiring diagrams are listed, followed by operation guidance, maintenance tips, and a troubleshooting section to resolve common issues. This manual is written in Chinese.
Haier SW80 specifications
| Tank capacity | 80 L (SW80 models) / 100 L (SW100 models) |
|---|---|
| Heating power | 2500 W |
| Operating voltage | 220 V~ 50 Hz |
| Maximum pressure rating | 0.75 MPa |
| Dimensions (80 L model) | 492 × 492 × 958 mm |
| Dimensions (100 L model) | 492 × 492 × 1128 mm |
| Temperature setting range | 45 °C – 75 °C |
| Recommended maximum pipe length | 3 m (single run) |
| Volume setting range | 80 L / 100 L / 120 L |
Source: Haier SW80VE-C1 SWBOVW-C1 SW100VE-C1 SW100VW-C1 water heater Manual
All Haier SW80 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should I do if there is no hot water?
Check that the temperature setting is not too low and that the tank is filled with water, then reset the temperature setting.
From: Haier SW80VE-C1 SWBOVW-C1 SW100VE-C1 SW100VW-C1 water heater Manual
What is the maximum recommended length for the circulation pipe?
The circulation pipe should not exceed 3 meters in a single run to avoid excessive heat loss.
From: Haier SW80VE-C1 SWBOVW-C1 SW100VE-C1 SW100VW-C1 water heater Manual
