Start here

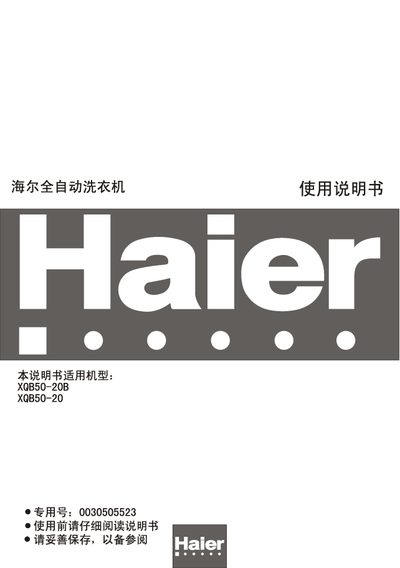

Haier XQB50-20B Washing Machine User Manual
This manual provides step‑by‑step instructions for installing, adjusting and safely operating the Haier XQB50‑20B fully automatic washing machine. It includes parts identification, wiring and grounding requirements, and detailed guidance on washing cycles, detergent use, and end‑of‑wash procedures.
Additional sections cover drainage pipe installation, water‑level settings, electrical safety tips, and after‑sales service information, ensuring users can maintain the machine and troubleshoot common issues. This manual is written in Chinese.
Haier XQB50-20B specifications
| Washing capacity | 5.0 kg |
|---|---|
| Water pressure range | 0.03 MPa – 0.78 MPa |
| Supply voltage | 220 V AC single‑phase |
All Haier XQB50-20B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What voltage should be used for the washing machine?
The machine must be connected to a reliable grounded single‑phase 220 V AC power source.
Can I use the washing machine with hot water above 55 °C?
Do not use water hotter than 55 °C to prevent damage to the machine and clothing.
What is the washing capacity of the XQB50-20B?
The machine can wash up to 5.0 kg of laundry per cycle.
What water pressure is required for proper operation?
The required water pressure is between 0.03 MPa and 0.78 MPa.
How should the drainage pipe be installed or re‑oriented?
Remove the existing pipe, adjust its direction as shown in the diagram, and secure it with the provided brackets and screws.
How is the water inlet hose connected?
Connect the water inlet hose tightly to the water supply fitting, ensuring the connection is secure and leak‑free.
