Key facts
- Brand
- Haier
- Model
- CXW-200
- Category
- Air Cleaners Purifiers
- Industry
- Appliances
- Documents
- 4
- Languages
- ZH
- Last added
- 2012-02-27
Start here

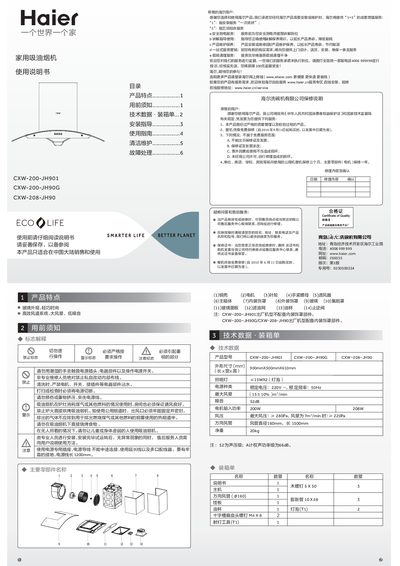

Haier CXW-200-JH901 / CXW-208-JH90 / CXW-200-JH90G Range Hood User Manual
This manual describes the key features of the Haier range hood, including its high‑efficiency airflow system, low noise operation, and safety warnings such as avoiding wet hands near the power plug and prohibiting unauthorized internal wiring changes. Technical data such as motor power, wind pressure, and noise level are listed for reference.
Installation steps cover wall mounting, duct connection, and optional interior decorative cover fitting. The user guide explains control panel functions, lighting, speed selection, and how to safely clean or replace components like the oil cup, filter mesh, and lighting bulb. A troubleshooting section helps diagnose common issues such as power loss, abnormal noises, or reduced suction. This manual is written in Chinese.
Haier CXW-200 specifications
| Rated Voltage | 220V~ |
|---|---|
| Rated Frequency | 50Hz |
| Maximum Wind Pressure | ≥ 280 Pa |
| Wind Pressure at 7 m³/min | ≥ 220 Pa |
| Air Duct Diameter | 160 mm |
| Maximum Duct Length | 3000 mm |
| Dimensions (L×W×H) | 900 mm × 500 mm × 610 mm |
Source: Haier CXW-200-JH901 / CXW-208-JH90 / CXW-200-JH90G Range Hood User Manual
All Haier CXW-200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I clean the oil filter?
Remove the oil cup, take out the oil filter, soak it in warm water with detergent, then rinse and dry before reinstalling.
From: Haier CXW-200-JH901 / CXW-208-JH90 / CXW-200-JH90G Range Hood User Manual
What should I do if the range hood does not turn on?
Check that the power plug is fully inserted, the socket has power, and the fuse is intact; reconnect or contact an electrician if needed.
From: Haier CXW-200-JH901 / CXW-208-JH90 / CXW-200-JH90G Range Hood User Manual
What should I do if the hood does not turn on?
Check that the power plug is fully inserted, verify the mains voltage, and ensure any fuse or circuit breaker is not tripped.
How can I cancel the delay timer?
Press the delay key again; the timer will be cancelled.
What should I check if the range hood has no power?
Make sure the power plug is fully inserted; if the plug is loose, reconnect it properly.
How often should the fan blades be cleaned?
The fan blades should be cleaned every three months to maintain proper operation.
