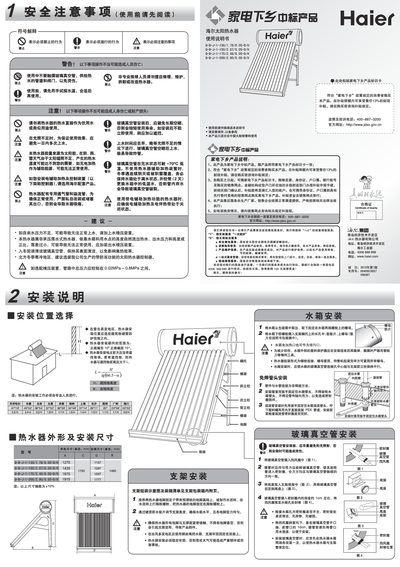

This user manual explains the safety precautions and proper handling of the Haier solar water heater. It warns against touching the glass vacuum tube, using the hot water for drinking, and operating the unit in insufficient sunlight conditions.
Detailed installation instructions cover site selection, mounting orientation, glass vacuum tube installation, pipe routing, and electrical connections. Operation sections describe manual, timed, and automatic water filling procedures, as well as maintenance and troubleshooting tips. This manual is written in Chinese.
| Model | Q-B-J-1-130/1.79/0.05-DVH |
|---|---|
| Usable Water Volume | 130 L |
| Solar Collector Area | 1.79 m² |
| Glass Vacuum Tube Size | 58 × 1800 mm |
| Number of Glass Vacuum Tubes | 14 |
| Auxiliary Heating Power | 1500 W |
| Water Level Sensor Height | 360 mm |
| Tank Inner Lining Material | SUS304 stainless steel |
| Insulation Type | Polyurethane foam |
| Applicable Standard | GB/T 19141‑2003 |
No, the manual states that the hot water should not be used directly as drinking water.
The heater should face south with a 10° east or 15° west offset.
In cold climates, install an electric heating belt (electric companion heating) on the outdoor pipe.
Open the manual valve to begin water filling; close it when water flows from the outlet indicating the tank is full.
