Key facts
- Brand
- Haier
- Model
- BCD-196TE
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-02-24
Start here

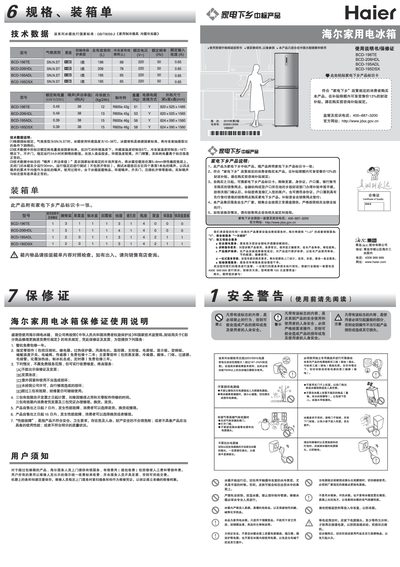

Haier BCD-196TE/206HDL/195ADL/195DSX Refrigerator User Manual
The manual lists the technical specifications for each model, including power consumption, noise level, cooling capacity, refrigerant type, weight and dimensions. It also contains the packing list, model‑specific data and the required installation clearances.
Safety instructions cover proper power connection, grounding, and handling precautions. Warranty terms describe free repair periods for the whole unit, specific components and major parts. The guide explains normal operation, fast‑freeze, holiday and lock/unlock functions, as well as troubleshooting and common fault codes. This manual is written in Chinese.
Haier BCD-196TE specifications
| Power consumption (kWh/24h) | 0.49 |
|---|---|
| Noise level (dB(A)) | 38 |
| Freezer capacity (kg/24h) | 12 |
| Refrigerant | R600a 43g |
| Weight (kg) | 51 |
| Dimensions (mm) | 620 × 525 × 1485 |
Source: Haier BCD-196TE/206HDL/195ADL/195DSX Refrigerator User Manual
All Haier BCD-196TE documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I activate the quick‑freeze function?
Press the C key; the quick‑freeze indicator (G) lights up and the freezer enters quick‑freeze mode for up to 24 hours.
From: Haier BCD-196TE/206HDL/195ADL/195DSX Refrigerator User Manual
How can I lock or unlock the control panel?
Press FB + D simultaneously for 3 seconds to lock; press B + D for 3 seconds to unlock.
From: Haier BCD-196TE/206HDL/195ADL/195DSX Refrigerator User Manual
